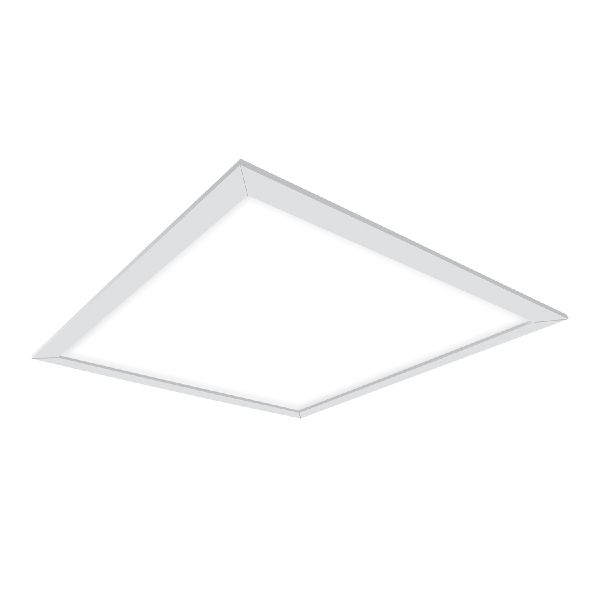

Metalux 22CGT3540C
2X2 40K 80CRI FLAT PANEL
SKU
829543
Metalux, 22CGT3540C, LED Panel, Flat, Series: CGT, 120/277 V, 31.4/31.7 W Fixture, 0.2/0.09 A, Back-Lit Lighting Technology, Integrated LED Lamp, 113/114 Lumens/W Light Output, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Frosted Lens, 3582 Lumens, Insulated Insulation, Surface/Suspended Mounting, Steel Housing Material, Post Painted Housing Finish, 23-3/4 in L x 23-3/4 in W x 2-1/8 in H Dimensions
- Thin 2-1/8 in height
- Acrylic micro-optics provide uniform illumination from corner to corner
- Extruded aluminum bezel tightly sealed to the housing for durability
- High performance efficacy up to 117 Lumens/W
- Fits in shallow plenums with room to spare
- Robust die formed steel housing is post painted for maximum durability
| Ballast Type | 0 to 10 V Dimmable |
|---|---|
| Dimensions | 23-3/4 in L x 23-3/4 in W x 2-1/8 in H |
| Amperage Rating | 0.2/0.09 A |
| Lumens | 3582 Lumens |
| Color Rendering Index (CRI) | 80 |
| Average Life | 60000 hr |
| Fixture Wattage | 31.4/31.7 W |
| Housing Finish | Post Painted |
| Lens Type | Frosted |
| Mounting Type | Surface/Suspended |
| Light Output | 113/114 Lumens/W |
| Insulation Type | Insulated |
| Color Temperature | 4000 K |
| Housing Material | Steel |
| Lamp Type | Integrated LED |
| Lighting Technology | Back-Lit |
| Type | Flat |
| Voltage Rating | 120/277 V |
| Series | CGT |
| Brand | Cooper Wiring Devices |
