WATTS 8800-13
2"LFF113FP THD FLOOD CTRL ASSY
SKU
870524

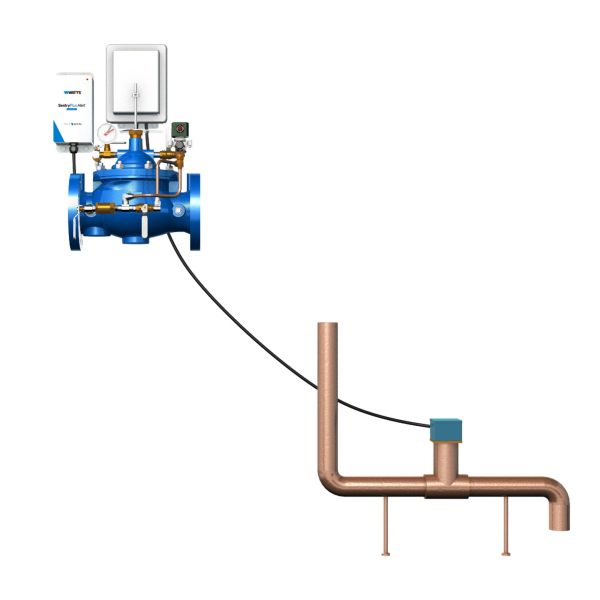

WATTS® Smart Flood Protection Shut Down Valve, Globe Pattern, Series: LFF113FP, 2 in Nominal, Thread End Style, 400 psig Pressure, 208 gpm Flow Rate, Reduced Pressure Zone Backflow, Media: Water, Ductile Iron Body, Epoxy Coated, 9-3/8 in L Dimensions, Domestic/Import: Domestic
- SentryPlus Alert flood monitoring and alert system
- Multi-channel alerts
- Solenoid control
- Installed upstream of reduced pressure zone backflow preventer
- Normally open valve - closes when continuous discharge from RPZ relief valve is sensed or by engaging solenoid by-pass
- Valve must be manually reset
- Position indicator provides local visual indication of valve closure
- JB113 provided valve mounted, can be remote mounted in field
- Flow sensor (FS99) and SentryPlus Alert wireless node (WN113) field installed
- Detects continuous water discharge from RPZ backflow preventor and shuts down the valve in case of abnormality
- SentryPlus Alert wirelessly alerts user via text, call or email
| Flow Rate | 208 gpm |
|---|---|
| End Style | Thread |
| Domestic/Import | Domestic |
| Media | Water |
| Finish | Epoxy Coated |
| Dimensions | 9-3/8 in L |
| Pressure Rating | 400 psig |
| Nominal Size | 2 in |
| Type | Globe Pattern |
| Backflow Type | Reduced Pressure Zone |
| Series | LFF113FP |
| Body Material | Ductile Iron |
| Brand | Watts |
