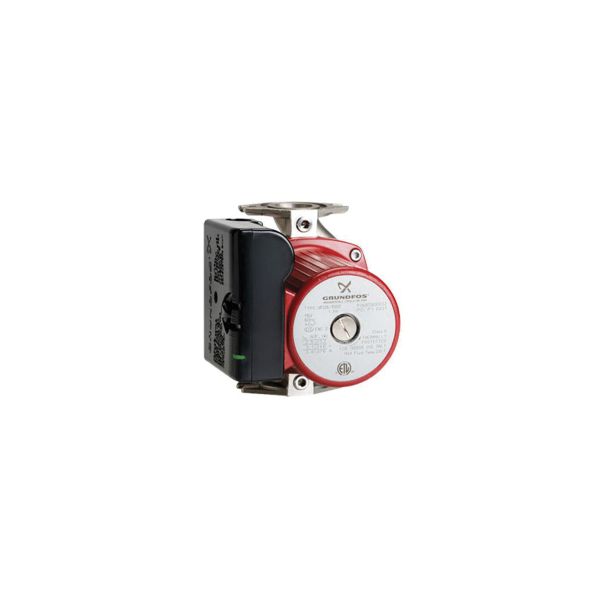

Grundfos 95906632

UPS26-150SF 1X115 STAINLSS CIR
SKU
435144
The product cannot be delivered by Truck Shipping

Grundfos Circulator Pump, Series: UPS, 52 gpm, 45.28 ft Maximum Head, 370 W, 115 VAC, 2.5 to 3.5 A, 60 Hz, 1 ph, 145 psi Maximum, 104 deg F Ambient, 7-1/8 in W x 6-1/2 in H

  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion resistant impeller, composite, PES
  • Stainless steel pump housing
  • 1 ph motor, no additional motor protection is required
More Information
Amperage Rating 2.5 to 3.5 A
Frequency Rating 60 Hz
Flow Rate 52 gpm
Series UPS
Temperature Rating 104 deg F Ambient
Phase 1 ph
Dimensions 7-1/8 in W x 6-1/2 in H
Voltage Rating 115 VAC
Maximum Pressure 145 psi
Power Rating 370 W
Maximum Head 45.28 ft
Brand Grundfos
