Grundfos 98548115
GRUNDFOS MULTI-STAGE BOOSTER
SKU
744912

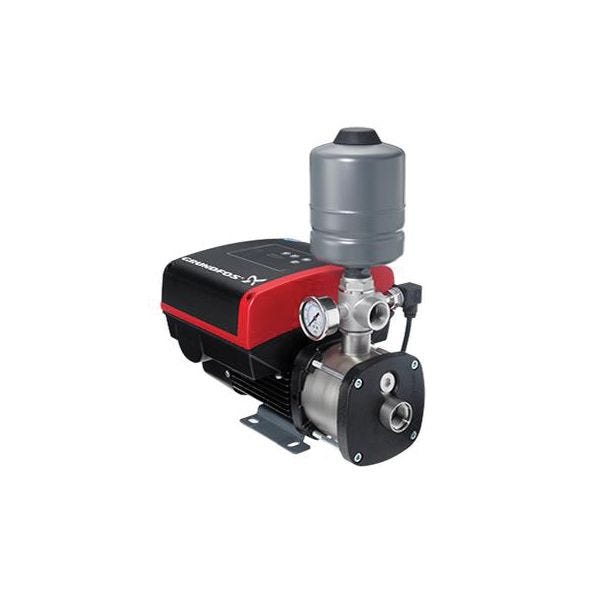

Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 24.7 gpm, 1-1/4 in NPT Inlet, 1-1/4 in NPT Outlet, 31 m Maximum Head, 18.11 ft Maximum Suction Lift, 1-1/2 hp, 200 to 240 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (2) 304 Stainless Steel Impeller, Horizontal Mount, 122 deg F Ambient, IP55, 304 Stainless Steel, 12.83 in L x 8.54 in W x 2.95 in H
- Constant pressure via integrated speed control
- Robust, stainless steel design
- Easy installation
- Low energy consumption
- Dry running protection
- Noise level below 55 dBA and even lower at controlled speed
- Five way fitting with non-return valve
- Diaphragm tank
- Pressure gauge
- Pressure sensor
- High-efficiency motor with frequency converter (IP55)
- Without cable and plug
- O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
| Maximum Head | 31 m |
|---|---|
| Dimensions | 12.83 in L x 8.54 in W x 2.95 in H |
| Impeller Type | (2) 304 Stainless Steel |
| Maximum Suction Lift | 18.11 ft |
| Power Rating | 1-1/2 hp |
| Flow Rate | 24.7 gpm |
| Power Rating | 1-1/2 hp |
| Type | Compact Multi-Stage |
| Temperature Rating | 122 deg F Ambient |
| Voltage Rating | 200 to 240 VAC |
| Series | CMBE |
| Frequency Rating | 50 Hz |
| Series | CMBE |
| Phase | 1 ph |
| Material | 304 Stainless Steel |
| Mounting Type | Horizontal |
| Motor Speed | 360 to 4000 rpm |
| Material | 304 Stainless Steel |
| Outlet Size | 1-1/4 in NPT |
| Type | Compact Multi-Stage |
| Impeller Type | (2) 304 Stainless Steel |
| Enclosure Type | IP55 |
| Mounting Type | Horizontal |
| Motor Speed | 360 to 4000 rpm |
| Outlet Size | 1-1/4 in NPT |
| Phase | 1 ph |
| Enclosure Type | IP55 |
| Frequency Rating | 50 Hz |
| Temperature Rating | 122 deg F Ambient |
| Inlet Size | 1-1/4 in NPT |
| Maximum Head | 31 m |
| Inlet Size | 1-1/4 in NPT |
| Flow Rate | 24.7 gpm |
| Brand | Grundfos |
