Grundfos 98788145
1-1/2 X 9 SS FLEX CONN. MIP
SKU
888145

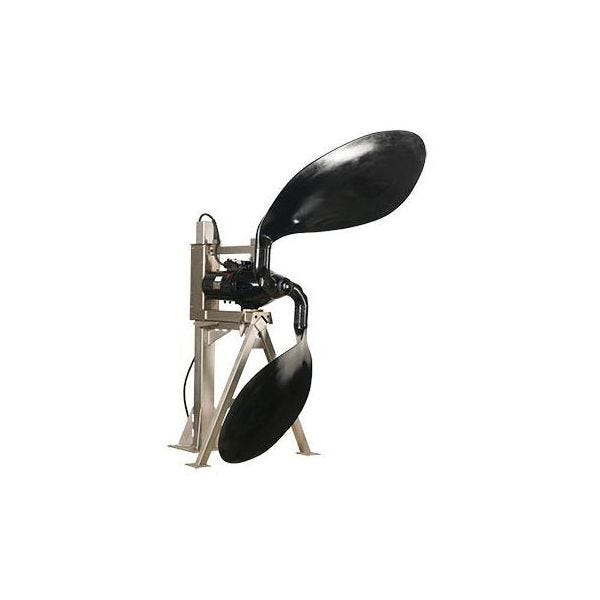

Grundfos Flowmaker, Series: SFG.60.102.38.6.1H, 6 hp, 460 VAC Delta, 10.4 A, 60 Hz, 3 ph, 30.857 Gear Ratio, 4.02 in Propeller Diameter, 38 rpm Propeller Speed, Gear Drive, 105.8 to 219.2 deg F Liquid Temperature Rating, Column Profile Mounting, Cast Iron, Epoxy Coated
- Highly energy-efficient products, driven by IE3 motor components
- Wide range of flexible installation accessories
- Simple maintenance and service electronic
- Leak sensor and moisture switch
- Shaft seal protected against abrasive materials
- Self-cleaning high-efficiency propellers
- Hydraulically efficient and robust propellers
- Strong axial gear in slim design for high hydro-dynamic efficiency
- Integrated overload and thermal protection
- Non-explosion-proof explosion protection
- Standard installation
- Without moisture sensor
- Polyurethane resin (Baydur®) propeller with cast iron reinforcement
| Finish | Epoxy Coated |
|---|---|
| Voltage Rating | 460 VAC Delta |
| Power Rating | 6 hp |
| Gear Ratio | 30.857 |
| Amperage Rating | 10.4 A |
| Phase | 3 ph |
| Material | Cast Iron |
| Series | SFG.60.102.38.6.1H |
| Mounting Type | Column Profile |
| Propeller Speed | 38 rpm |
| Drive Type | Gear |
| Propeller Diameter | 4.02 in |
| Frequency Rating | 60 Hz |
| Liquid Temperature Rating | 105.8 to 219.2 deg F |
| Brand | Grundfos |
