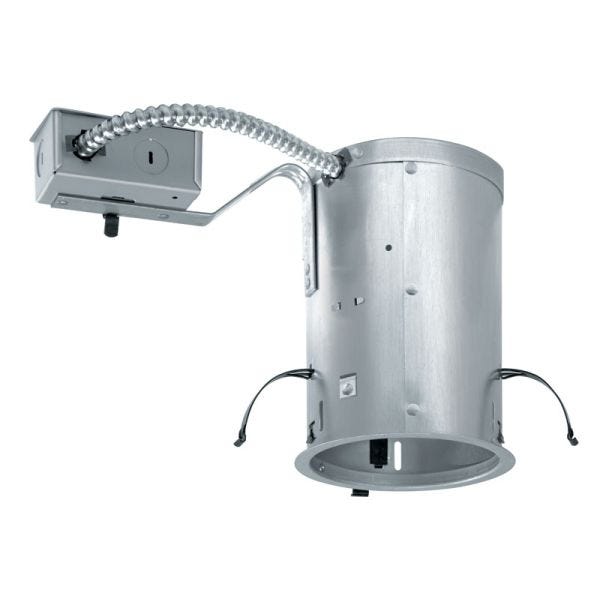

Juno TC20R

Juno® Recessed Lighting Housing, Remodel Universal, Series: TC Series, 120 VAC, 5-1/2 in Ceiling Opening, Incandescent Lamp, 85 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mount, For Use With: 5 in Trim, 5 in Dia, 7-1/2 in Height, 5-7/8 in Width, 12-1/2 in Depth, Aluminum Housing

• Medium base porcelain socket with nickel plated copper screw shell
• Drop socket with spring to accommodate a wide variety of trim and lamp combinations
• Remodel springs accommodate up to a 1-1/8-in ceiling thickness
• Housing is fully assembled for ease of installation
• Pre-wired junction box with (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
• Shadow-free, knife edge trim design blends smoothly into the ceiling
• UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG branch circuit conductors
• Thermally protected against improper use of lamps or insulation
• Installs through an opening in the ceiling from below
• Secured in place by factory installed remodel springs
• Design for use in non-insulated areas
• If installed where insulation is present, the insulation must be pulled back 3 in from all sides of the TC housing
• Slot cut outs and riveted spring mounting tabs accommodate various trim designs
• Remodel springs accommodate up to 1-1/8 in ceiling thickness
• A19/BR30/PAR20/PAR30/PAR30L/R20 lamps
• The remodel housing is ideal for applications where the backside of the ceiling is not accessible
• The non-IC housing is designed to be installed in non-insulated areas or where insulation is at least 3 in from the housing
