EATON AH1221V
INDUSTRIAL GRADE 20A SW
SKU
676558

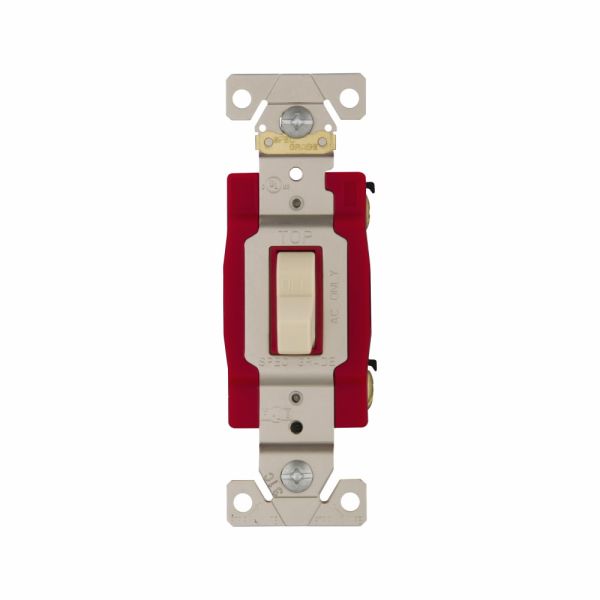

EATON Arrow Hart Toggle Switch, Auto Ground, 120/277 V, 20 A, 1 to 2 hp Power, 20 A at 120/277 VAC Contact, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate, Ivory, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.31 in W x 1.05 in D Dimensions
- Color-coded faces identify amperage
- 14 to 10 AWG terminal accommodation
- 1 hp at 120 VAC, 2 hp at 240 VAC
- 2.4 in L screw to screw
- Nylon toggle
| Dimensions | 1.31 in W x 1.05 in D |
|---|---|
| Power Rating | 1 to 2 hp |
| Voltage Rating | 120/277 V |
| Operating Cycles | 30000 Cycles |
| Mounting | Wall |
| Environmental Conditions | -20 to 60 deg C Operating Temperature |
| Contact Rating | 20 A at 120/277 VAC |
| Color | Ivory |
| Type | Auto Ground |
| Number of Poles | 1 |
| Material | Polycarbonate |
| Terminal Type | Screw |
| Amperage Rating | 20 A |
| Actuator | Toggle |
| Brand | Eaton |
| Amperage | 20 Amp |
| Type | Toggle |
| Voltage | 120/277V |
| Color | Ivory |
