EATON AH6810U
MAN CONT 30A 600VAC 2P
SKU
876360

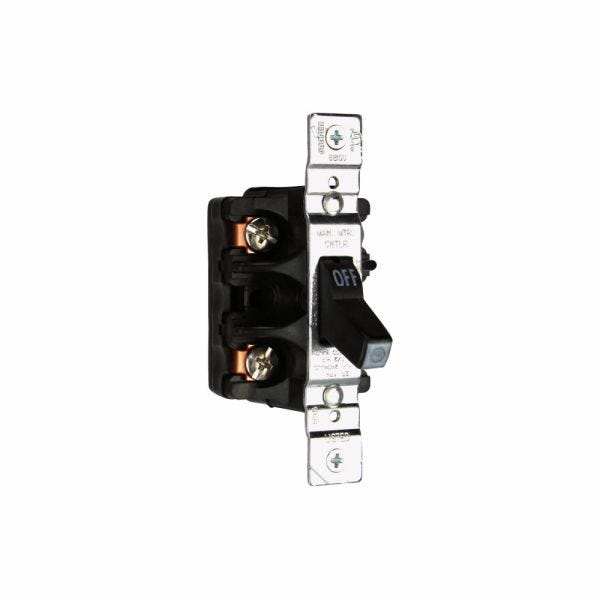

EATON, AH6810U, Manual Motor Control Switch, 2-Position, 600 VAC, 30 A, 2 hp, 5 hp Power, DPST Contact Configuration, 30 A at 600 VAC Contact, 2 Pole, Maintained Action, Front Wired/Screw Connection, NEMA 3/7/9 Enclosure, Panel Mounting, Glass Filled Nylon, Black, 3.81 in H x 1.69 in W x 1.75 in D Dimensions
- Compact design provides extra wiring room
- High impact-resistant, glass filled nylon construction
- Easy-to read electrical ratings on rugged steel mounting straps
- Highly visible ON/OFF markings on large, rugged toggles
- Distinct wire pockets and THK wall arc barriers prevent strands from straying
- 2-sets of contacts per pole distribute load and make/break action for long, reliable duty
- Totally enclosed body eliminates exposed contacts
- Cam and roll design provides dependable, trouble-free switch action
- Double break, silver alloy, butt type contacts provide long life
- Separate arc quenching chambers isolate each pole
- Front terminals are designed for easy wiring
- 10 AWG wire
| Connection | Front Wired/Screw |
|---|---|
| Action | Maintained |
| Material | Glass Filled Nylon |
| Enclosure | NEMA 3/7/9 |
| Type | 2-Position |
| Contact Configuration | DPST |
| Voltage Rating | 600 VAC |
| Color | Black |
| Actuator | Maintained |
| Amperage Rating | 30 A |
| Power Rating | 2 hp, 5 hp |
| Dimensions | 3.81 in H x 1.69 in W x 1.75 in D |
| Number of Poles | 2 |
| Mounting | Panel |
| Contact Rating | 30 A at 600 VAC |
| Brand | Eaton |
