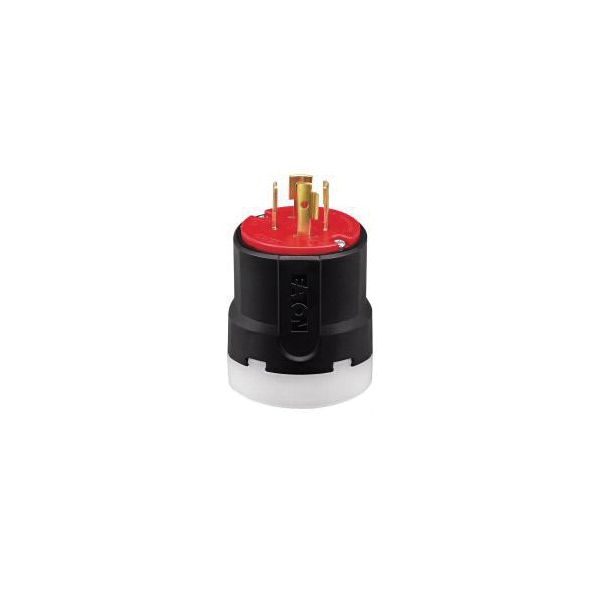

EATON AHCL1630P
CCL Plug 30A 480V 3PH 3P4W-RD&
SKU
881167
EATON Wiring Devices Arrow Hart Locking Device Plug, 3-Phase Color Coded Ultra Grip, 480 VAC, 30 A, 3 Pole, 3 Wires, NEMA L16-30 NEMA Rating, Industrial Grade, 0.38 to 1.16 in Diameter Cord, -40 to 140 deg F, Back Wire Terminal, Nylon, Black/Red, 2.82 in H x 2.3 in W x 2.13 in D Dimensions
- Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability
- A dual dovetail design provides superior cord grip retention and the grommet allows usage across a wide range of cord diameters
- Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords
| Grade | Industrial |
|---|---|
| Number of Poles | 3 |
| Color | Black/Red |
| Type | 3-Phase Color Coded Ultra Grip |
| Dimensions | 2.82 in H x 2.3 in W x 2.13 in D |
| Amperage Rating | 30 A |
| Number of Wires | 3 |
| Cord Diameter | 0.38 to 1.16 in |
| Voltage Rating | 480 VAC |
| Temperature Rating | -40 to 140 deg F |
| Material | Nylon |
| Terminal Type | Back Wire |
| NEMA Rating | NEMA L16-30 |
| Brand | Cooper Wiring Devices |
| Style | Locking |
| Type | Plugs |
