Mersen AJT40
40A 600V FUSE CLASS J TD
SKU
706716

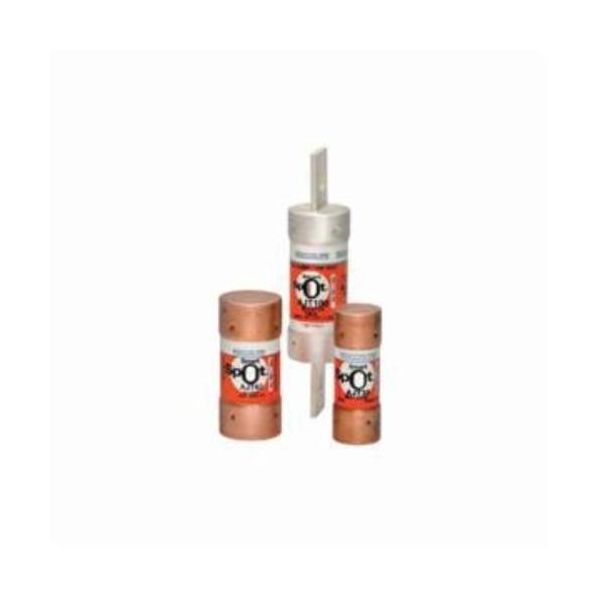

Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 40 A, 600 VAC, 200 kA Interrupt, Class: J, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 1-1/16 in Dia x 2-3/8 in L Body
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
| Class | J |
|---|---|
| Body Size | 1-1/16 in Dia x 2-3/8 in L |
| Element | Dual |
| Material | Fiberglass |
| Series | AJT |
| Voltage Rating | 600 VAC |
| Indicating/Non-Indicating | Indicating |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage North American Time Delay |
| Body Type | Cylindrical |
| Amperage Rating | 40 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200 kA |
| Brand | Merson Fuses |
| Class | class J |
