American Standard 7755305.002
A/S NEXTGEN BATT FCT W/INT.MX
SKU
833368

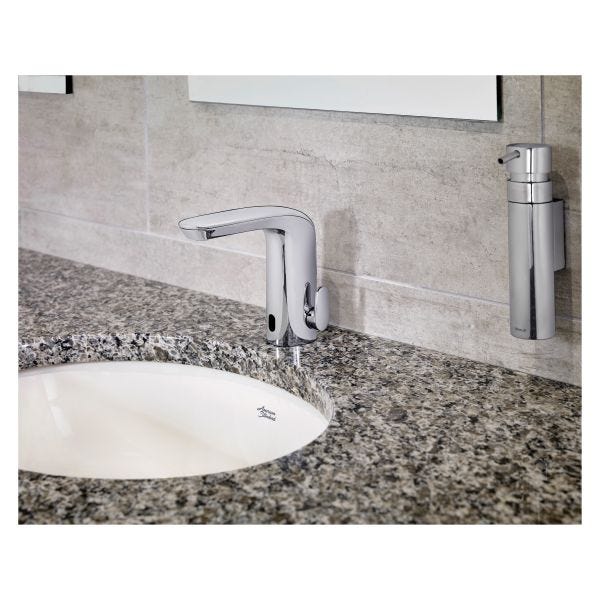

American Standard Integrated Proximity Lavatory Faucet, NextGen™ Selectronic® Collection, 1.5 gpm Flow Rate, Fixed Spout, 4-15/16 in Spout Reach, 5 in Spout Height, 1 Handle, 1 Faucet Hole, 3/8 in Connection, Compression Connection, Spray Pattern: Laminar, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mounting, Solenoid, 6-7/8 in L x 1-7/8 in W x 5-3/4 in H Dimensions, Metal, Polished Chrome, Import, Commercial
- Battery included and pre-installed in faucet
- Exclusive SmarTherm™ safety shut-off automatically protects the user from scalding ASSE 1070 certified
- Dual supplies for hot and cold water
- Above deck mixing - handle can adjust the water temperature
- Simple, integrated design with all electronics contained in the faucet spout
- 0.5 gpm saves 77% of water usage when compared to a 2.2 gpm faucet
- Easy installation and maintenance - faucet installs from the top
- All serviceable parts are easily accessible
- Flexible Selectronic® platform with programmable sensor
- Self-cleaning solenoid reduces maintenance
- CR-P2 lithium battery comes installed in the faucet
- Four years battery life
- Faucet installs from the top, no control box below deck
- Fail-safe - faucet automatically shuts off upon loss of power or dead battery
- No reset required
- Battery and solenoid valve easily accessible after removing cover
| Spray Pattern | Laminar |
|---|---|
| Collection | NextGen™ Selectronic® |
| Maximum Deck Thickness | 1-1/2 in |
| Commercial/Residential | Commercial |
| Valve/Cartridge Type | Solenoid |
| Connection Size | 3/8 in |
| Number of Faucet Holes | 1 |
| Function | Touchless |
| Finish/Color | Polished Chrome |
| Dimensions | 6-7/8 in L x 1-7/8 in W x 5-3/4 in H |
| Spout Height | 5 in |
| Number of Handles | 1 |
| Material | Metal |
| Spout Type | Fixed |
| Spout Reach | 4-15/16 in |
| Flow Rate | 1.5 gpm |
| Mounting Type | Deck |
| Connection Type | Compression |
| Domestic/Import | Import |
| Brand | American Standard |
| Mounting | Single Hole |
