Gruvlok 7005011775
3"GRV BFV NYLON COATED; EPDM
SKU
220361

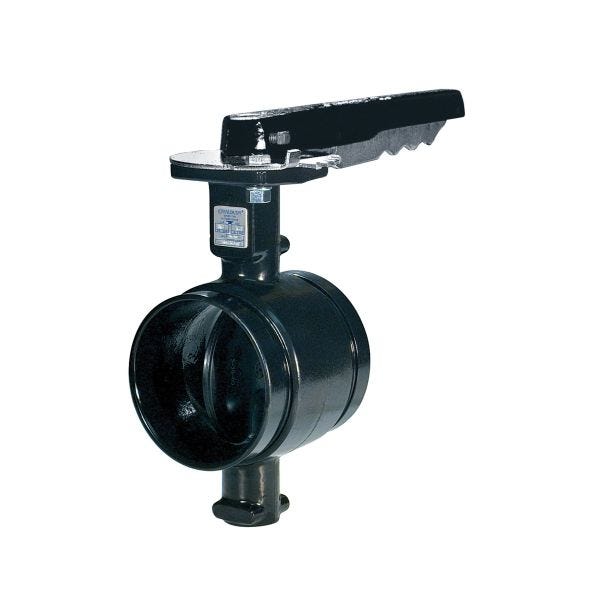

Gruvlok® Butterfly Valve, Series: FIG 7700, 3 in Nominal, Grooved, -40 to 230 deg F, 10-Position Lever-Lock Handle Actuator, 3-13/16 in Inlet to Outlet Length, 6-1/4 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem and Pin, Nylon Coated, 3-1/2 in OD, Domestic
- The stem-to-disc connection provides zero backlash.
- Ductile iron disc with grade E EPDM coating
- For operator safety, hand levers on 8 in valves are limited to applications with a 25 psi maximum pressure
| Top to Inlet Center | 6-1/4 in |
|---|---|
| Stem & Pin Material | 416 Stainless Steel (Stem) |
| Domestic/Import | Domestic |
| End Style | Grooved |
| Temperature Rating | -40 to 230 deg F |
| Inlet to Outlet Length | 3-13/16 in |
| Dimensions | 3-1/2 in OD |
| Actuator Type | 10-Position Lever-Lock Handle |
| Finish | Nylon Coated |
| Nominal Size | 3 in |
| Body Material | Ductile Iron |
| Disc Material | Ductile Iron |
| Series | FIG 7700 |
| Brand | Gruvlok |
