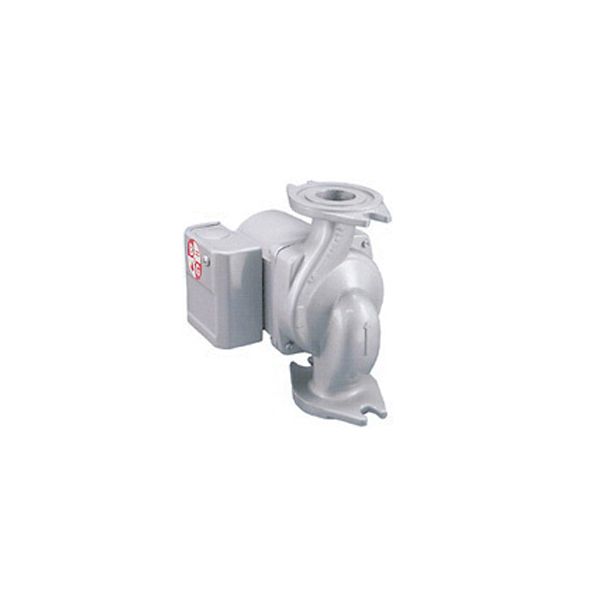

Bell & Gossett 103357LF
LF SSF-22 92W S.S. CIRC
SKU
360650
Bell & Gossett Wet Rotor Circulator Pump, Series: SSF, 92 W, 115 VAC, 0.8 A, 60 Hz, 1 ph, 150 psi Maximum, 2940 rpm Motor, In-Line Mount, 230 deg F, 4-7/8 in W x 5-9/16 in D x 6-3/8 in H
- Maintenance-free, stainless steel pump body
- High starting torque provides dependable start-ups
- Unique B and G DuraGlide bearing system assures whisper-quiet, Maintenance-free operation
- Standard, universal flange-to-flange dimensions
- Backed by band G's representatives and a 3-year warranty the best in the business
- DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
- Low-watt, energy-conserving models
- Contains less than 0.25% lead content by weight on wetted surface
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
- Construction: Stainless steel pump body, Noryl™ impeller, ceramic shaft, carbon bearings
| Amperage Rating | 0.8 A |
|---|---|
| Frequency Rating | 60 Hz |
| Mounting Type | In-Line |
| Series | SSF |
| Temperature Rating | 230 deg F |
| Phase | 1 ph |
| Dimensions | 4-7/8 in W x 5-9/16 in D x 6-3/8 in H |
| Voltage Rating | 115 VAC |
| Maximum Pressure | 150 psi |
| Power Rating | 92 W |
| Motor Speed | 2940 rpm |
| Brand | Bell & Gossett |
