EATON 277V-BOX
SP SW OVER PILOT LIGHT IV
SKU
676491

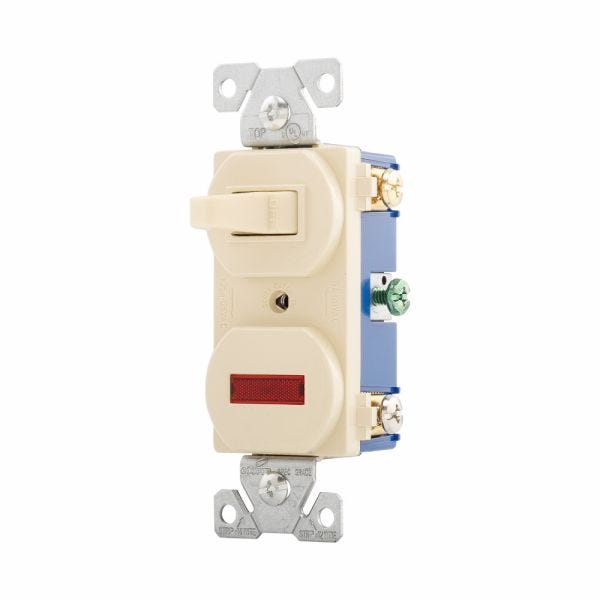

EATON Arrow Hart® AC Toggle Combination Switch, 3-Way Duplex Heavy Duty, 120 VAC, 15 A, 25 W Wattage, 1 Pole, Neon Lamp, Switch Action, Surface Mounting, Screw Terminal, -20 to 60 deg C, Thermoplastic, Ivory, 3.28 in H x 1.37 in W x 0.95 in D Dimensions
- Toggle switch and pilot light
- Grounding terminal screw standard
- Receptacles have triple wipe line contacts and double wipe ground contacts to insure long term plug retention
- Thick steel mounting strap zinc plated for corrosion resistance
- Break off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept up to 10 AWG solid or stranded wire
- Pilot light may be wired to indicate power "ON" or power "OFF"
- Combination slot/Phillips® head mounting and terminal screws ease installation
- Brass contact
- Thermoplastic top and back body are virtually unbreakable enclosure
| Lamp Type | Neon |
|---|---|
| Wattage | 25 W |
| Dimensions | 3.28 in H x 1.37 in W x 0.95 in D |
| Voltage Rating | 120 VAC |
| Action | Switch |
| Temperature Rating | -20 to 60 deg C |
| Mounting | Surface |
| Color | Ivory |
| Type | 3-Way Duplex Heavy Duty |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Terminal Type | Screw |
| Amperage Rating | 15 A |
| Brand | Eaton |
| Amperage | 15 Amp |
| Type | Switches & Lights |
| Voltage | 120V |
| Color | Ivory |
