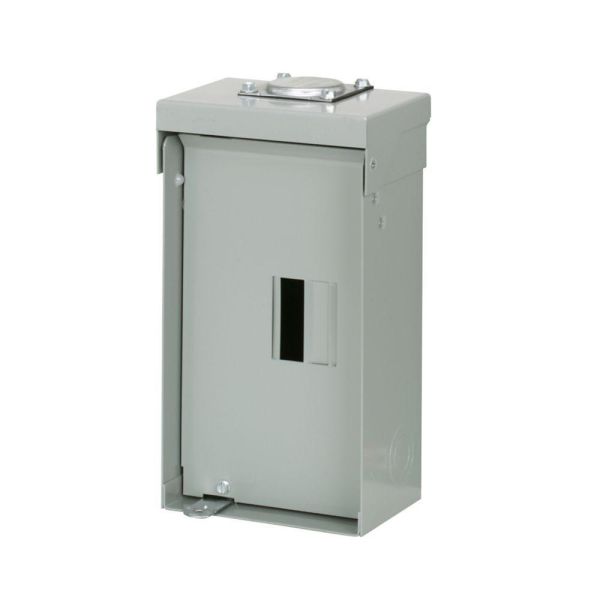

EATON BR24L125RP
100 AMP ML RAINTIGHT 2/4
SKU
676251
EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 4 Pole, 10 kA Interrupt, 4 Circuits, BR Breaker, 3-Wire Wiring Configuration, 2 Spaces, 14 to 1/0 AWG Wire, Surface Mounting, NEMA 3R Enclosure, NEMA 6R Enclosure Box, 13 in L x 7.2 in W x 4.7 in H
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- Suitable for use as service equipment when no more than two service disconnecting mains are provided or when not used as lighting and appliance panelboard
- Insulated or bondable split neutral
- For use with type BR 1 in breakers
- Outdoor rainproof enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Current design
| Wire Size | 14 to 1/0 AWG |
|---|---|
| Type | 1-Phase |
| Wiring Configuration | 3-Wire |
| Enclosure Type | NEMA 3R |
| Number of Circuits | 4 |
| Number of Poles | 4 |
| Breaker Type | BR |
| Mounting Type | Surface |
| Enclosure Box Size | NEMA 6R |
| Dimensions | 13 in L x 7.2 in W x 4.7 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 125 A |
| Voltage Rating | 120/240 VAC |
| Number of Spaces | 2 |
| Brand | Eaton |
