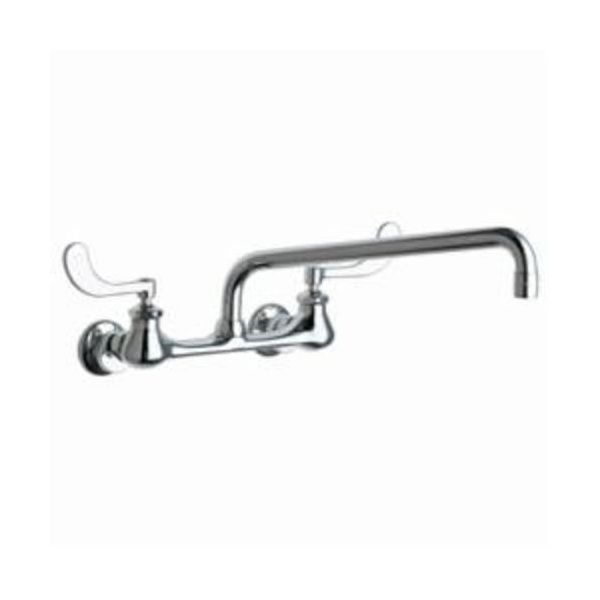

Chicago Faucet 631-L12WXFABCP
CHIC FAUC.BCK MTD
SKU
535052
Chicago Faucet® Hot and Cold Water Sink Faucet, 2.2 gpm, 8 in Center Distance, L-Type Swivel Spout, 12 in Spout Reach, 5 in Spout Height, Wrist Blade, 2 Handles, 2 Faucet Holes, 1/2 in, FNPT, Spray Pattern: Softflo® Aerator, Wall Mount, Quaturn® Compression Valve/Cartridge, 5 in H, Brass, Polished Chrome, Domestic, Commercial
- 8 in fixed centers
- L12AB - 12 in L-type swing spout
- E3AB - 2.2 gpm (8.3 lpm) pressure compensating Softflo® aerator
- 317-PR - Vandal proof 4 in wrist blade handle, sixteen-point tapered broach
- XTAB - Quaturn® compression operating cartridge
- WXFAB - straight 2 in inlet supply arm with wall flange
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- 20 to 125 psi operating
- 40 to 140 deg F operating
- ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
| Domestic/Import | Domestic |
|---|---|
| Handle Type | Wrist Blade |
| Finish/Color | Polished Chrome |
| Spout Type | L-Type Swivel |
| Material | Brass |
| Number of Handles | 2 |
| Connection Type | FNPT |
| Mounting Type | Wall |
| Spout Height | 5 in |
| Dimensions | 5 in H |
| Center Distance | 8 in |
| Connection Size | 1/2 in |
| Valve/Cartridge Type | Quaturn® Compression |
| Commercial/Residential | Commercial |
| Spout Reach | 12 in |
| Number of Faucet Holes | 2 |
| Flow Rate | 2.2 gpm |
| Spray Pattern | Softflo® Aerator |
| Brand | Chicago Faucet |
