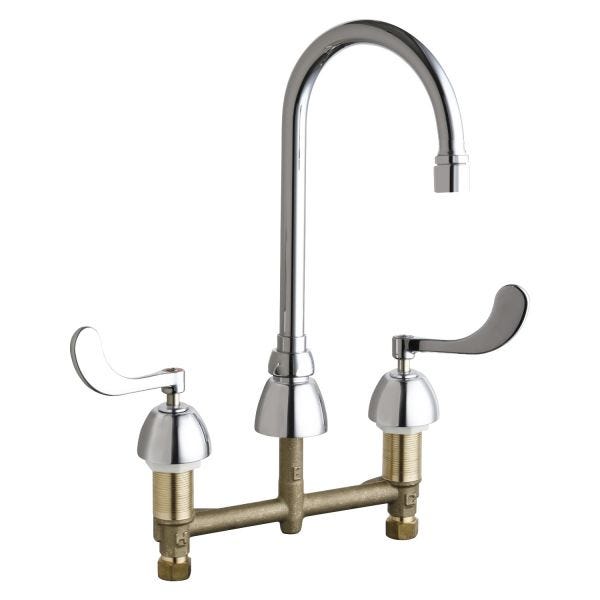

Chicago Faucet 786-GR2AE35V317AB
8"CC GSNCK FAUC W/WRIST BLADES
SKU
726228
Chicago Faucet® Kitchen Sink Faucet, Concealed, Series: 786, 1.5 gpm, 8 in Center Distance, Gooseneck Spout, 5-1/4 in Spout Reach, 7-1/8 in Spout Height, Lever Handle, 2 Handles, Side Spray(Y/N): No, 3 Faucet Holes, 1-1/4 in Faucet Hole, 1/2 in Connection, NPSM Connection, 1-3/8 in Maximum Deck Thickness, Deck Mounting, Quaturn® Compression, 11-5/8 in H, Brass, Polished Chrome, Commercial/Residential: Commercial
- 8 in fixed centers
- GN2ARSAB 5-1/4 in restricted swing gooseneck spout
- E35VPAB 1.5 gpm (5.7 L/min) vandal proof pressure compensating softflo aerator
- 317-PR vandal proof 4 in wrist blade handle, sixteen-point tapered broach
- 377-XTAB Quaturn® compression operating cartridge
- 1/2 in NPSM supply inlets and coupling nut for 3/8 in or 1/2 in flexible riser
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- 20 to 125 psi operating
- 40 to 140 deg F operating
- For hot and cold water
| Maximum Deck Thickness | 1-3/8 in |
|---|---|
| Faucet Hole Size | 1-1/4 in |
| Type | Concealed |
| Side Spray(Y/N) | No |
| Number of Handles | 2 |
| Series | 786 |
| Handle Type | Lever |
| Connection Type | NPSM |
| Spout Height | 7-1/8 in |
| Number of Faucet Holes | 3 |
| Spout Reach | 5-1/4 in |
| Dimensions | 11-5/8 in H |
| Material | Brass |
| Center Distance | 8 in |
| Connection Size | 1/2 in |
| Commercial/Residential | Commercial |
| Flow Rate | 1.5 gpm |
| Valve/Cartridge Type | Quaturn® Compression |
| Finish/Color | Polished Chrome |
| Spout Type | Gooseneck |
| Mounting Type | Deck |
| Brand | Chicago Faucet |
| Type | Two-Handle |
