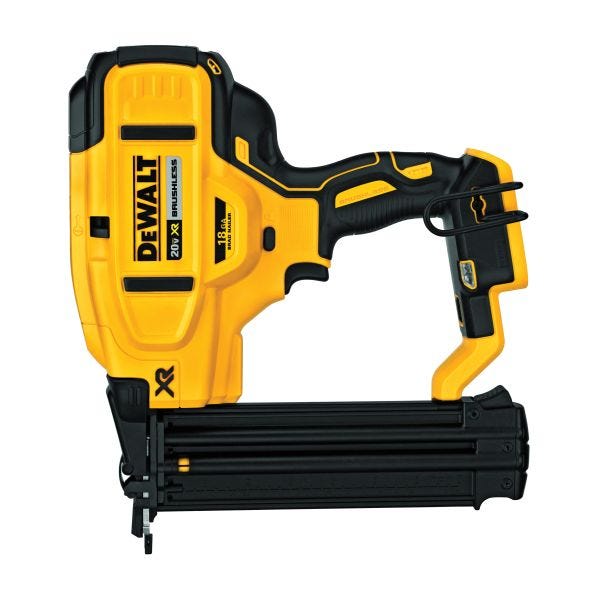

DeWALT DCN680B
DEWALT 18GA BRAD NAILER 20V
SKU
903883
DeWALT® 20V MAX* MATRIX™ Cordless Angled Finish Nailer, 18 ga Flat Head, Bare Tool/Kit: Tool, Series: XR™, 5/8 to 2-1/8 in Fastener, Adhesive Collation, Straight Collation, 110 Nails Magazine, Side Load Loading, 0.047 in Shank, Contact/Sequential Actuation Trigger, Non-Marring Tip, 20 V, Lithium-Ion Battery, Battery Included: No, Plastic Housing Material, Overmold Rubber Grip Handle, Black/Yellow, 10.3 in Overall Length, 3.7 in W x 11.8 in H
- 100% battery powered, eliminates the hassle of using gas, compressor and hose
- Brushless motor maximizes run time and durability
- Micro-nose improves line-of sight and accuracy of nail placement
- Tool-free selectable trigger for sequential or contact actuation modes
- Tool-free depth adjustment for precise countersinking of nails
- Tool-free jam release to quickly and easily clear nail jams
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Low nail lockout prevents dry firing and unwanted marks on the work material
- Compatible with all DeWALT® 20V MAX* batteries
| Housing Material | Plastic |
|---|---|
| Color | Black/Yellow |
| Voltage Rating | 20 V |
| Battery Type | Lithium-Ion |
| Tip Type | Non-Marring |
| Trigger Type | Contact/Sequential Actuation |
| Shank Size | 0.047 in |
| Fastener Size | 5/8 to 2-1/8 in |
| Collation Angle | Straight |
| Type | 18 ga Flat Head |
| Series | XR™ |
| Collation Type | Adhesive |
| Magazine Loading | Side Load |
| Magazine Capacity | 110 Nails |
| Overall Length | 10.3 in |
| Battery Included | No |
| Dimensions | 3.7 in W x 11.8 in H |
| Bare Tool/Kit | Bare Tool |
| Handle Type | Overmold Rubber Grip |
| Brand | DeWalt |
