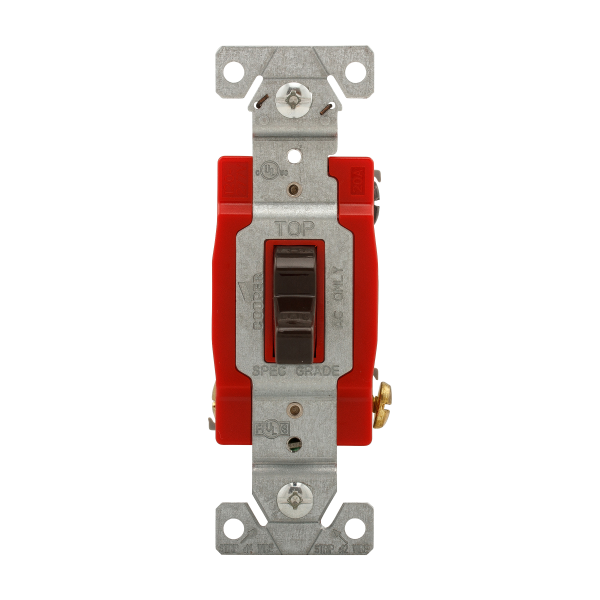

EATON 1223B
INDUSTRIAL GRADE 20A 3WAY
SKU
676563
EATON Arrow Hart® Toggle Switch, 3-Way Construction Grade, Series: 1220, 120/277 V, 20 A, 1 hp Power, Toggle Actuator, Wall Mounting, Back/Side Wire/Screw Terminal, Polycarbonate, Brown, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions
- Rugged thermoplastic top and bottom housing provides durability and strength
- Color coded top housing helps identify amperage
- Back and side wire terminals accept up to 10 AWG solid or stranded wire
- Dual back wire holes for maximum feed through wiring flexibility
- 1-piece brass contact arm assures proper contact for low resistance switching
- Automatic grounding eliminates need for bonding jumper in metal enclosures
- Tri-combo terminal and mounting screws for flexibility in installation
- 14 to 10 AWG wire
| Dimensions | 1.31 in L x 0.88 in W x 3.28 in H |
|---|---|
| Power Rating | 1 hp |
| Voltage Rating | 120/277 V |
| Series | 1220 |
| Mounting | Wall |
| Environmental Conditions | -4 to 140 deg F Operating Temperature |
| Color | Brown |
| Type | 3-Way Construction Grade |
| Material | Polycarbonate |
| Terminal Type | Back/Side Wire/Screw |
| Amperage Rating | 20 A |
| Actuator | Toggle |
| Brand | Cooper Wiring Devices |
| Amperage | 20 Amp |
| Type | Toggle |
| Voltage | 120/277V |
| Color | Brown |
