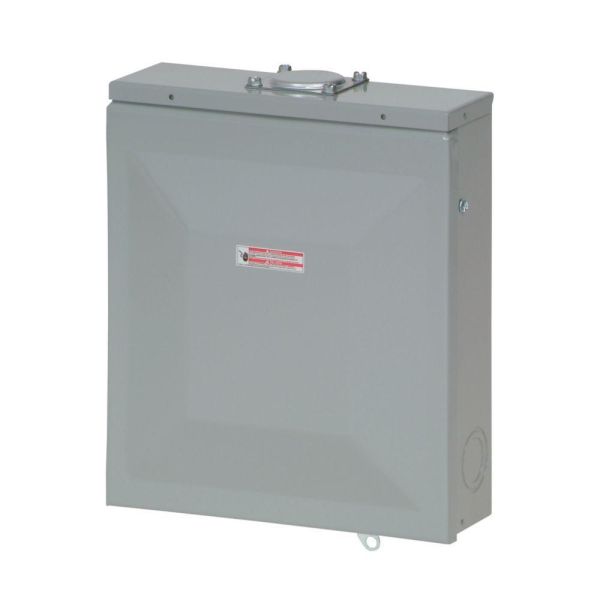

EATON BR612L125RP
100 AMP ML RAINTIGHT 6/12
SKU
676268
EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 12 Pole, 10 kA Interrupt, 12 Circuits, BR Breaker, 3-Wire Wiring Configuration, 6 Spaces, 14 to 1 AWG Cu/Al Wire, Surface Mounting, NEMA 3R Enclosure, NEMA 7R Enclosure Box, 3.56 in L x 11 in W x 13 in H
- Flexible neutral design
- Tangential main knockouts
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- Insulated/bondable split neutral type
- Outdoor rainproof enclosure
- Copper/aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Current design
| Wiring Configuration | 3-Wire |
|---|---|
| Number of Circuits | 12 |
| Enclosure Box Size | NEMA 7R |
| Type | 1-Phase |
| Enclosure Type | NEMA 3R |
| Number of Spaces | 6 |
| Wire Size | 14 to 1 AWG Cu/Al |
| Mounting Type | Surface |
| Number of Poles | 12 |
| Interrupt Rating | 10 kA |
| Amperage Rating | 125 A |
| Voltage Rating | 120/240 VAC |
| Breaker Type | BR |
| Dimensions | 3.56 in L x 11 in W x 13 in H |
| Brand | Eaton |
