BURNDY GAR3904
4-4/0 2 1/2 - 3 1/2 IPS
SKU
805843

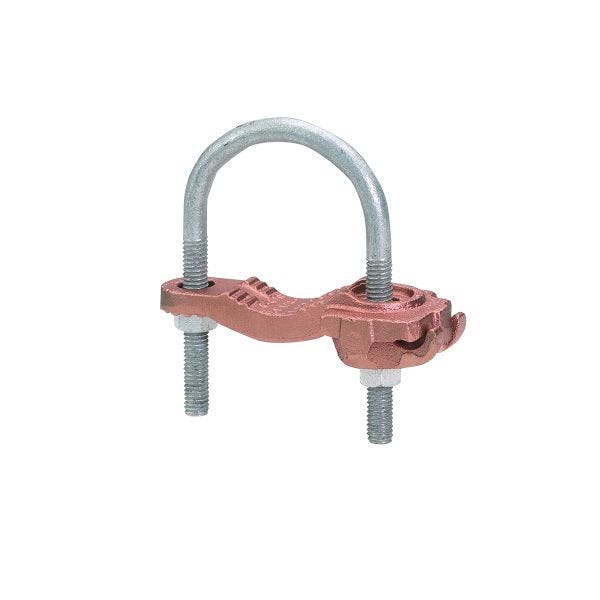

BURNDY® Mechanical Grounding Connector, Series: GAR3902, 2-1/2 to 3-1/2 in Pipe, 2-1/2 to 3-1/2 in Rod, Copper/Stranded Conductor, 4 to 4/0 AWG Conductor, Conductor to Water Pipe, Wrench Installation, Copper, Galvanized, 1-3/4 in L x 6 in W x 6-1/2 in H
- High conductivity copper ground connector for connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes
- Cable clamp swivels at 90 deg
- Permits parallel grounding of one pipe or a 90 deg cable run for grounding several parallel pipes
- Simplified installation
- Long lasting corrosion-resistance and acceptable for direct burial in earth or concrete
- Provides quality assurance to recognized industry National electrical Code® standards from an independent party
- Steel hardware
- 200 in-lb installation torque
- 3-gang/8 in bolt size
- 4 to 4/0 AWG stranded (main/primary) conductor size
- Galvanized screw
- 2-1/2 to 3-1/2 in IPS pipe
- Made of high conductivity copper
- 90 deg cable clamp swivels
| Connection Type | Conductor to Water Pipe |
|---|---|
| Dimensions | 1-3/4 in L x 6 in W x 6-1/2 in H |
| Pipe Size | 2-1/2 to 3-1/2 in |
| Installation | Wrench |
| Conductor Size | 4 to 4/0 AWG |
| Conductor Type | Copper/Stranded |
| Rod Size | 2-1/2 to 3-1/2 in |
| Series | GAR3902 |
| Material | Copper |
| Finish | Galvanized |
| Brand | Burndy LLC |
