Gardner Bender 10-001
WIREGARD GRAY GB-1 100BOX
SKU
718452

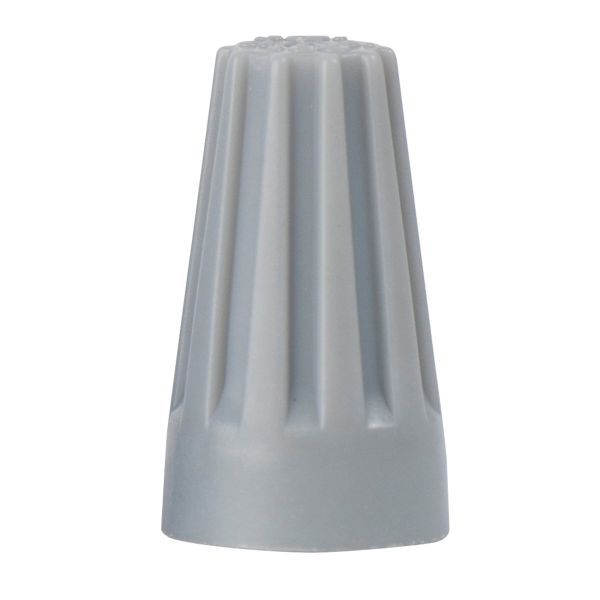

Gardner Bender, 10-001, Twist-On Wire Connector, Threaded, Series: GB-1, Positive Grip Shell Style, Square Spring, Aluminum/Copper Wire, 22 to 16 AWG Wire, 300 VAC, Specifications: 1/8 in Top Dia, 105 deg C, Polypropylene Shell/Thermoplastic, Gray, Zinc Plated, 0.25 in ID x 0.33 in OD x 0.58 in L Dimensions
- Industry standard twist-on connector with top quality, performance and durability
- Tight, square-wire spring makes quick, secure connections for positive continuity
- (1) 22 AWG, (1) 22 AWG - (2) 16 AWG wire combinations
- 100/Carton
- Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
- Square wire zinc plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
- Tough, thermoplastic shell shields against environmental extremes
- Connectors manufactured with high temperature rated plastic and inner spring with zinc plated, square profile steel wire
- Resists chemical action from hydrocarbons, diluted acid or alkaline solutions
- Color-coded for easy size selection
| Temperature Rating | 105 deg C |
|---|---|
| Color | Gray |
| Dimensions | 0.25 in ID x 0.33 in OD x 0.58 in L |
| Spring Type | Square |
| Specifications | 1/8 in Top Dia |
| Wire Type | Aluminum/Copper |
| Shell Style | Positive Grip |
| Voltage Rating | 300 VAC |
| Series | GB-1 |
| Material | Polypropylene Shell/Thermoplastic |
| Wire Size | 22 to 16 AWG |
| Type | Threaded |
| Finish | Zinc Plated |
| Brand | ECM Industries |
