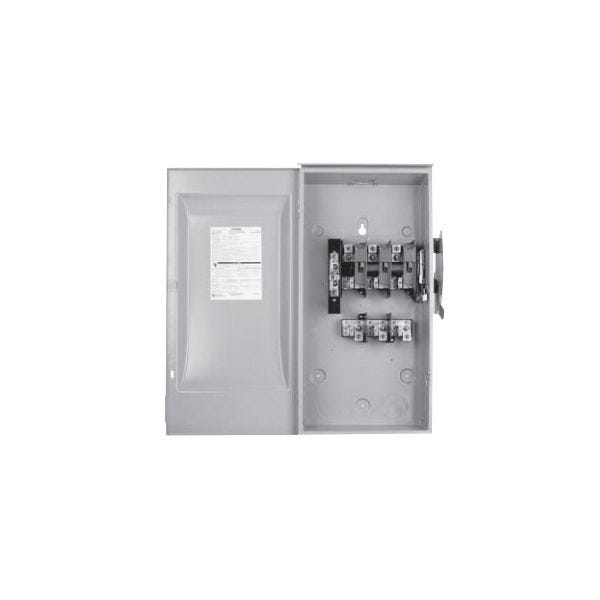

Siemens GF321NRA
30A 240V 3P LV SAFETY SWITCH
SKU
708803
Siemens Safety Switch, Type VBII Enclosed General Duty Low Voltage Fusible Single Throw, Series: A Series, 240 VAC, 30 A, 3 hp, 1 ph, 60 Hz Frequency, 3 Pole, 4 Wires, 10/100 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 8.56 in H x 5.44 in W x 2.75 in D Dimensions, Steel
- Updated switch is an enhancement of legacy VBII design
- New compact sizes for improved space efficiency
- New oversized lugs for maximum wire range and easy termination
- Visible blade, double break switching action
- Padlocking provisions to lock cover closed or to lock switch in the OFF position
- Rated 10 kA with class H fuses or circuit breaker, 100 kA with class R fuses
- 3 hp at 240 vac 1-phase 2-wire, 7.5 hp at 240 vac 3-phases 3-wire, 5 hp at 250 VDC
| Material | Steel |
|---|---|
| Series | A Series |
| Dimensions | 8.56 in H x 5.44 in W x 2.75 in D |
| Number of Poles | 3 |
| Short Circuit Current Rating | 10/100 kA |
| Frequency Rating | 60 Hz |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Mounting Type | Surface |
| Type | Type VBII Enclosed General Duty Low Voltage Fusible Single Throw |
| Voltage Rating | 240 VAC |
| Horsepower | 3 hp |
| Temperature Rating | -29 to 85 deg C |
| Amperage Rating | 30 A |
| Number of Wires | 4 |
| Terminal Type | Lug |
| Brand | Siemens Ind |
