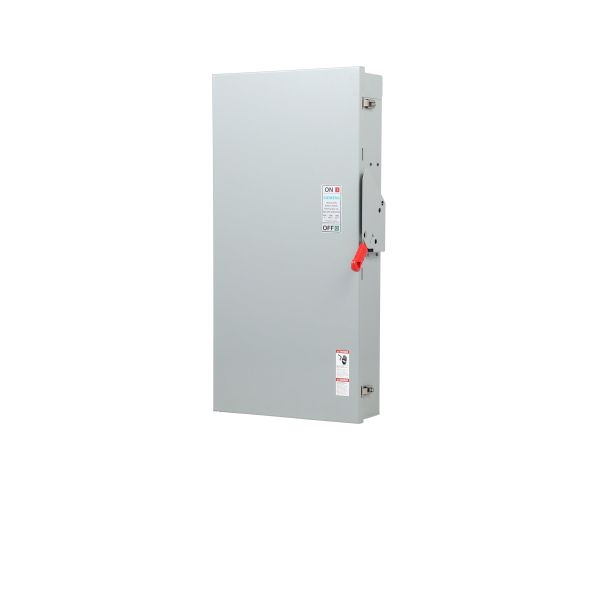

Siemens HF365RA
400A 600V 3P SAFETY SWITCH
SKU
746170
Siemens Safety Switch, Type VBII Fusible Heavy Duty Low Voltage Single Throw, 600 VAC, 400 A, 125 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, TPST Contact Form, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 56.07 in H x 26 in W x 14.68 in D Dimensions, Steel
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to three padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
| Material | Steel |
|---|---|
| Dimensions | 56.07 in H x 26 in W x 14.68 in D |
| Number of Poles | 3 |
| Short Circuit Current Rating | 200 kA |
| Actuator Type | Lever Operated |
| Frequency Rating | 60 Hz |
| Enclosure Type | NEMA 3R |
| Phase | 3 |
| Mounting Type | Surface |
| Type | Type VBII Fusible Heavy Duty Low Voltage Single Throw |
| Contact Form | TPST |
| Voltage Rating | 600 VAC |
| Horsepower | 125 hp |
| Temperature Rating | -29 to 85 deg C |
| Amperage Rating | 400 A |
| Number of Wires | 3 |
| Terminal Type | Lug |
| Brand | Siemens Ind |
