Grundfos 96402695
SEAL KIT TP C/TC 16MM BUBE
SKU
586363

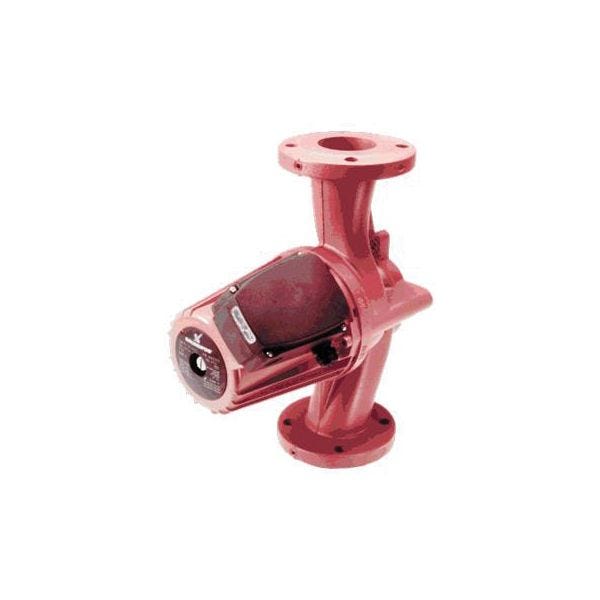

Grundfos VersaFlo® Circulator Pump, Canned Rotor, Series: UPS32-40F, 27.6 gpm Flow Rate, 13.12 ft Maximum Head, 120 W Power, 230 VAC, 0.47 to 0.54 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, 1750 rpm Motor, 304 Stainless Steel Impeller, 140 deg F, IPX4D Enclosure, Ceramic Radial/Carbon Thrust Bearing, 11.81 in W x 11 in H Dimensions
- Maintenance-free
- Low noise and low energy
- Complete range and wide range of accessories
- Stainless steel rotor can, bearing plate and rotor cladding
- Aluminum alloy stator housing
- Stator with built-in thermal switch
- Non-electronically controlled circulator pumps for domestic building with speed control
- 1-1/4 in Non ANSI 2 bolt with (2) 1/2 in Dia holes
- Flange pipe connection
- Cast iron pump housing
- Large stator
- 3-speed motor
| Voltage Rating | 230 VAC |
|---|---|
| Power Rating | 120 W |
| Bearing Type | Ceramic Radial/Carbon Thrust |
| Maximum Pressure | 145 psi |
| Maximum Head | 13.12 ft |
| Type | Canned Rotor |
| Amperage Rating | 0.47 to 0.54 A |
| Phase | 1 ph |
| Temperature Rating | 140 deg F |
| Dimensions | 11.81 in W x 11 in H |
| Series | UPS32-40F |
| Impeller Type | 304 Stainless Steel |
| Motor Speed | 1750 rpm |
| Flow Rate | 27.6 gpm |
| Enclosure Type | IPX4D |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
