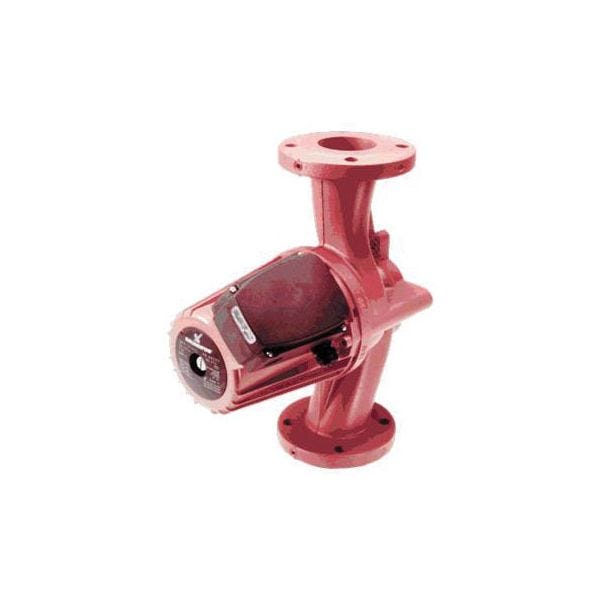

Grundfos 96439643
UP43-110F 3/4HP 115/230V 4BOLT
SKU
349054
Grundfos VersaFlo® Circulator Pump, 1-Speed, Series: UP Series, 105 gpm, 1-1/2 in Flange Inlet, 1-1/2 in Flange Outlet, 36.09 ft Maximum Head, 590 W, 115 to 230 VAC, 5.1/2.7 A, 60 Hz, 1 ph, 124.73 psi Maximum, 3450 rpm Motor, 304 Stainless Steel Impeller, 104 deg F Ambient, IP44, Thrust Bearing, 12.2 in W x 8.5 in H
- Quiet operation
- Maintenance-free
- Easy to install
- Small profile (1-piece vs 3-piece)
- Seal less, which eliminates worries about hot water leakage
- Pumped water lubricates the shaft and bearings so there is no oil to leak
- No couplers to change
- Wet rotor design
- Terminal box or Line cord models
- Cast iron housing
- GF 40/43 flange connection
| Voltage Rating | 115 to 230 VAC |
|---|---|
| Power Rating | 590 W |
| Bearing Type | Thrust |
| Maximum Pressure | 124.73 psi |
| Maximum Head | 36.09 ft |
| Type | 1-Speed |
| Amperage Rating | 5.1/2.7 A |
| Phase | 1 ph |
| Inlet Size | 1-1/2 in Flange |
| Temperature Rating | 104 deg F Ambient |
| Dimensions | 12.2 in W x 8.5 in H |
| Series | UP Series |
| Impeller Type | 304 Stainless Steel |
| Motor Speed | 3450 rpm |
| Outlet Size | 1-1/2 in Flange |
| Flow Rate | 105 gpm |
| Enclosure Type | IP44 |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
