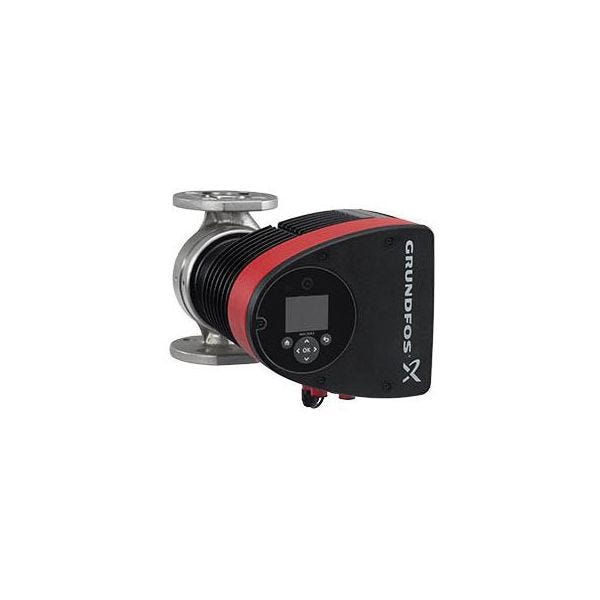

Grundfos 98126830
MAGNA3 40-80 SS 208-230V 1PH
SKU
582002
Grundfos, 98126830, Circulator Pump, 1-Head, Series: MAGNA3, 46.7 gpm Flow Rate, 1.57 in Flange Inlet, 1.57 in Flange Outlet, 26.25 ft Maximum Head, 16 to 274 W Power, 208 to 230 VAC, 0.19 to 1.36 A, 60 Hz Frequency, 1 ph, 174.05 psi Maximum, 30% Glass Fiber Polyethersulfone Impeller, 32 to 104 deg F Ambient, X4D Enclosure, Thrust Bearing, 8-1/2 in H Dimensions
- Flow limit
- FlowAdapt - a combination of the AutoAdapt control mode and flow limit function
- Built-in Grundfos differential-pressure and temperature sensor
- Proportional pressure control
- Constant pressure control
- Constant temperature control
- Constant-curve duty
- Maximum or minimum curve duty
- Automatic night setback
- Self-explanatory user interface with TFT display and high quality silicone push-buttons
- Heat energy monitor
- Wireless multi pump function
- 8-9/16 in L port-to-port
- Standard flange
- Stainless steel pump housing
| Voltage Rating | 208 to 230 VAC |
|---|---|
| Power Rating | 16 to 274 W |
| Bearing Type | Thrust |
| Maximum Pressure | 174.05 psi |
| Maximum Head | 26.25 ft |
| Type | 1-Head |
| Amperage Rating | 0.19 to 1.36 A |
| Phase | 1 ph |
| Inlet Size | 1.57 in Flange |
| Temperature Rating | 32 to 104 deg F Ambient |
| Dimensions | 8-1/2 in H |
| Series | MAGNA3 |
| Impeller Type | 30% Glass Fiber Polyethersulfone |
| Outlet Size | 1.57 in Flange |
| Flow Rate | 46.7 gpm |
| Enclosure Type | X4D |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
