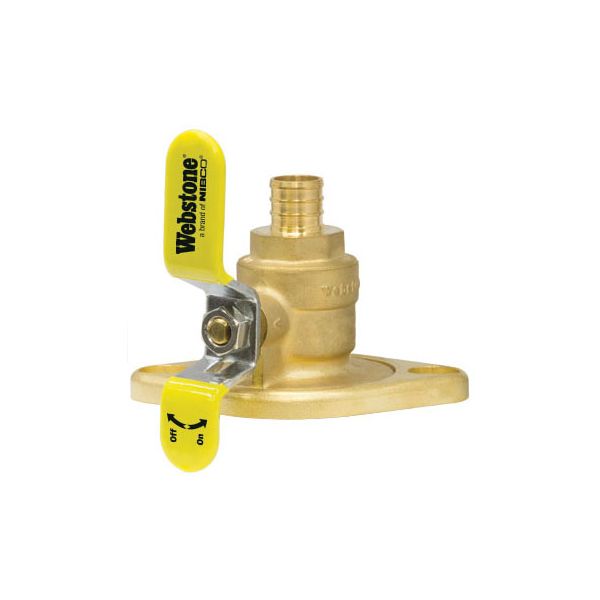

Webstone H-11404W
1" PEX ROTATING FLANGE
SKU
897254
Webstone The Isolator® Ball Valve, Uni-Flange, Series: 1140, 1 in Nominal, F1807 PEX x Rotating Flanged, 400 psi, Full Port, Media: Gas/Oil/Water, 1 in Orifice, Brass Ball, 2.92 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, Import
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
- Flange features a conical inlet to minimize turbulence
- Fits virtually any standard circulator pump
- Saves 18 minutes
- Replaces 3 components
- Eliminates 2 leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
| Pressure Rating | 400 psi |
|---|---|
| Media | Gas/Oil/Water |
| Series | 1140 |
| End Style | F1807 PEX x Rotating Flanged |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Brass |
| Ball Material | Brass |
| Orifice Size | 1 in |
| Port Type | Full |
| Type | Uni-Flange |
| Nominal Size | 1 in |
| Inlet to Outlet Length | 2.92 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2.63 in |
| Brand | Webstone |
