Webstone H-41404WHV
LF 1" ISOLATOR W/ROT.FLG.
SKU
671807

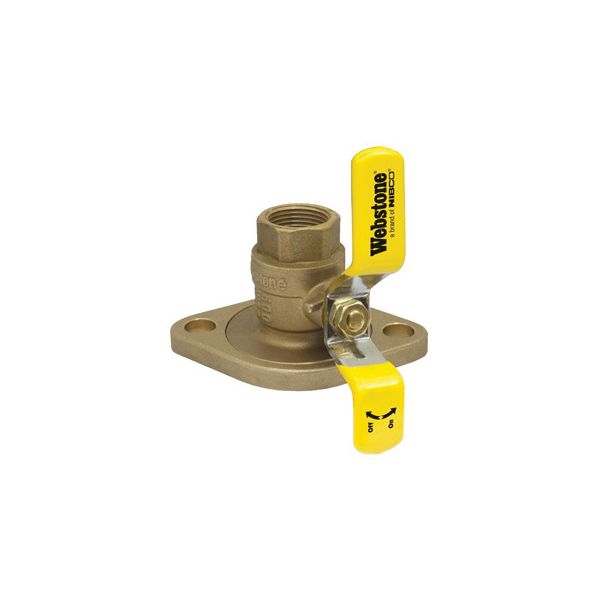

Webstone The Isolator® Clean Brass® Ball Valve, Series: 4140, 1 in Nominal, IPS x Rotating Flanged, 600 psi, 100 deg F, Full Port, Media: Water/Glycol Mixture, Lever Handle Actuator, HCP Brass Ball, 3-1/16 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
- Flange features a conical inlet to minimize turbulence
- Fits virtually any standard circulator pump
- Saves 18 minutes
- Replaces 3 components
- Eliminates 2 leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
| Pressure Rating | 600 psi |
|---|---|
| Media | Water/Glycol Mixture |
| Series | 4140 |
| End Style | IPS x Rotating Flanged |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Lever Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 1 in |
| Inlet to Outlet Length | 3-1/16 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2-5/8 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
