Webstone 41406
WEB 1-1/2" FLANGE (1 EACH)
SKU
545939

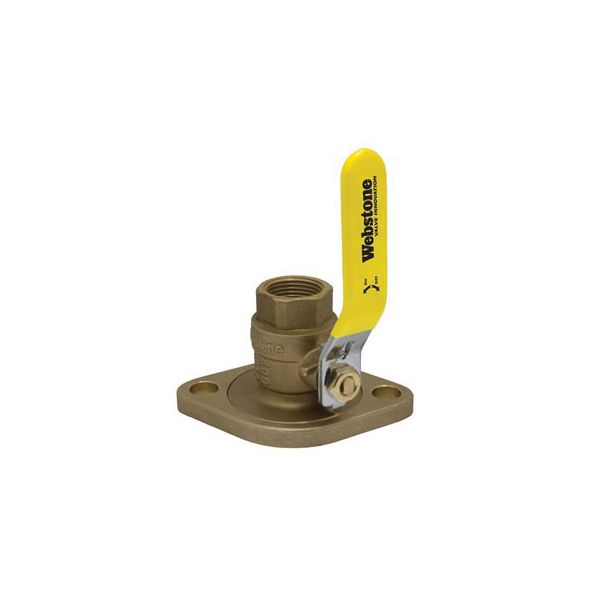

Webstone The Isolator®, 41406, Ball Valve, Standard Uni-Flange, Series: 4140, 1-1/2 in Nominal, FNPT x Rotating Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1-1/2 in Orifice, Wing Style T-Handle Actuator, 4 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
- The features and benefits you trust in our original Isolator® line with two versatile enhancements
- 3-way ball purges before or after the pump
- Unique uni-body design is preserved
- Bonus wing style T-handle, nuts and bolts
- Compatible with popular press tools
- Ball valve with integral spring check saves labor, space, and leak paths
- Brass stem
- Guaranteed for life
- Save 63 minute of labor
- Replace three component
- Saves 18 min
- Prevents electrolysis
- Full port forged brass uni-flange ball valve with detachable rotating flange, adjustable packing gland
- Fully removable outer flange secured by snap ring
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Eliminate two leak path
- Blow-out proof stem
| Pressure Rating | 600 psi CWP |
|---|---|
| Media | Glycol Mixture/Oil/Water |
| Series | 4140 |
| End Style | FNPT x Rotating Flange |
| Trim Material | Brass/PTFE |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Orifice Size | 1-1/2 in |
| Port Type | Full |
| Type | Standard Uni-Flange |
| Actuator Type | Wing Style T-Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 1-1/2 in |
| Inlet to Outlet Length | 4 in |
| Domestic/Import | Import |
| Top to Inlet Center | 3-1/2 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
