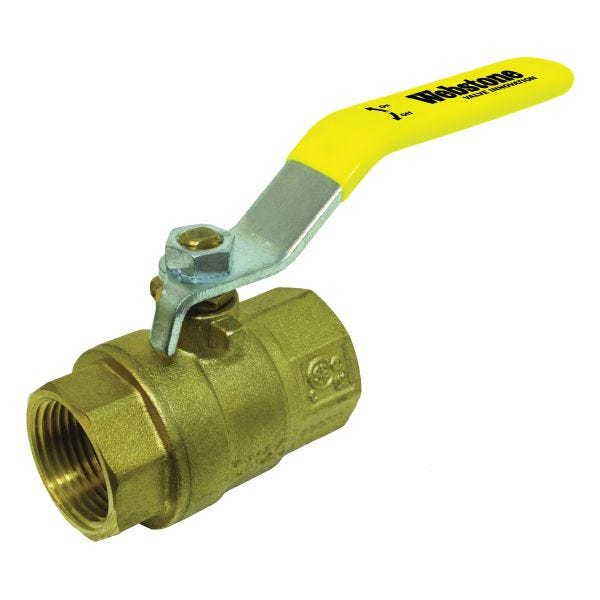

Webstone 41703
3/4" IPS FULL PORT BV #600
SKU
630040
Webstone Clean Brass™, 41703, Ball Valve, Standard, Series: 4170, 3/4 in Nominal, FNPT End Style, 600 psi CWP/150 psi WSP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Lever Handle Actuator, 2-3/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
- Adjustable Packing Gland
- Ball valve with integral spring check saves labor, space, and leak paths
- Control flow with quarter-turn lever handle
- Brass stem
- PTFE seat/stem seal
- Models available to satisfy all state and federal low-lead laws
- This approved Webstone valve is actuated by a blow-out proof stem
- With chrome plated lever handle
| Pressure Rating | 600 psi CWP/150 psi WSP |
|---|---|
| Media | Glycol Mixture/Oil/Water |
| Series | 4170 |
| End Style | FNPT |
| Trim Material | Brass/PTFE |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Orifice Size | 3/4 in |
| Port Type | Full |
| Type | Standard |
| Actuator Type | Lever Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 2-3/8 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2-1/16 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
