Webstone H-50313W
3/4SWT X HOSE BALL VALVE LF
SKU
563749

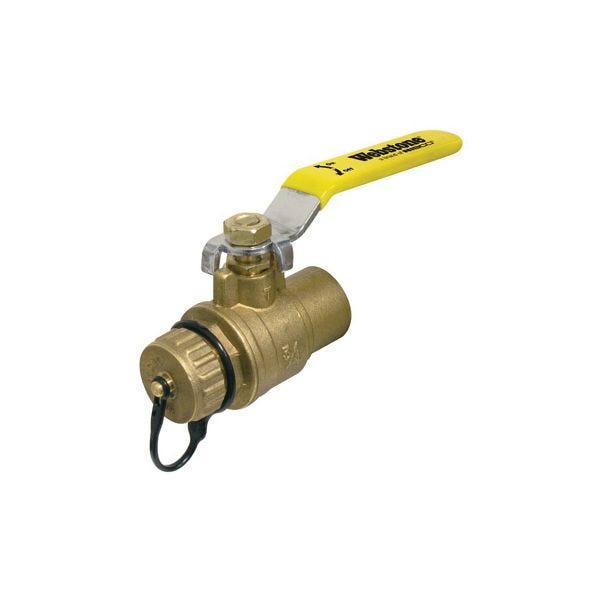

Webstone The Isolator® Clean Brass® Ball Valve, Series: 5031, 3/4 in Nominal, C x Hose, 600/150 psi, 100 deg F, Full Port, Media: Gas/Oil/Water, Reversible Handle Actuator, HCP Brass Ball, 2-9/16 in Inlet to Outlet Length, 2-1/8 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
- Controls flow with quarter-turn lever handle
- Easily transition from FNPT to hose
- Saves time
- Replaces components
- Reduces leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
- Models available to satisfy all state and federal low-lead laws
- Available in FIP x Hose, SWT x Hose, PRS x Hose, FIP
| Pressure Rating | 600/150 psi |
|---|---|
| Media | Gas/Oil/Water |
| Series | 5031 |
| End Style | C x Hose |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Reversible Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 2-9/16 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2-1/8 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
