Webstone H-50416HV
1 1/2"SWT UNI-FLG W/DRAIN
SKU
526794

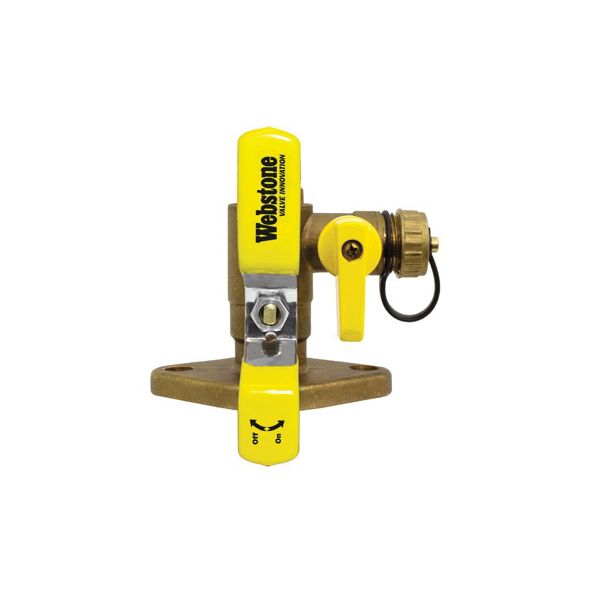

Webstone The Isolator® Uni-Flange Ball Valve, Series: 5041, 1-1/2 in Nominal, C x Flanged, 600 psi, 100 deg F, Full Port, Media: Water/Glycol Mixture, HCP Brass Ball, 5-13/16 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Flange features a conical inlet to minimize turbulence
- Multi-function drain makes the isolator the only valve that drains from either side of the pump
- Fits virtually any standard circulator pump
- Saves 63 minutes
- Replaces 8 components
- Eliminates 7 leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
| Pressure Rating | 600 psi |
|---|---|
| Media | Water/Glycol Mixture |
| Series | 5041 |
| End Style | C x Flanged |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Port Type | Full |
| Temperature Rating | 100 deg F |
| Nominal Size | 1-1/2 in |
| Inlet to Outlet Length | 5-13/16 in |
| Domestic/Import | Import |
| Top to Inlet Center | 3-1/4 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
