Webstone H-50614
WEBSTONE 1CC BV-W-DRAIN
SKU
388562

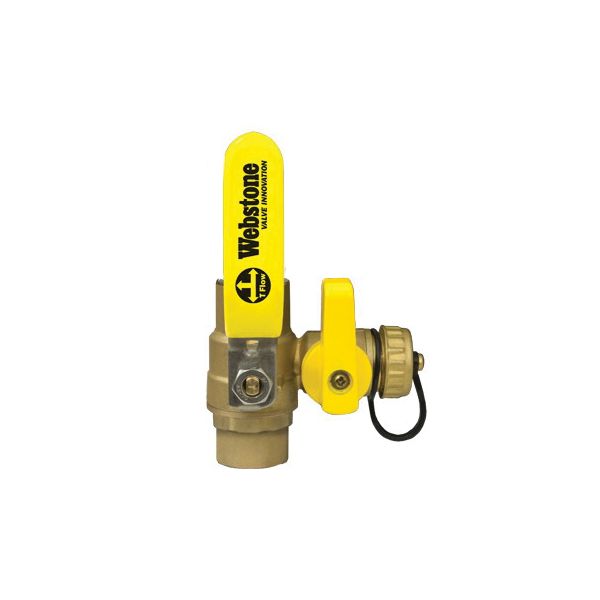

Webstone, H-50614, Ball Valve, Standard, Series: Pro-Pal® 5061, 1 in Nominal, C End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1/2 in Orifice, Lever Operated Actuator, 3-9/16 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import
- Full port forged brass ball valve with hi-flow hose drain reversible handle and adjustable packing gland
- Eliminate assemblies needed to isolate and drain any portion of a piped system
- Replace four component
- Eliminate three leak path
- PTFE seat/stem seal
- Brass stem
- EPDM washer
- Reversible handle for added versatility
- Blow-out proof stem
- Guaranteed for life
- Saves 27 minutes of labor
- Valves with the T-flow adjustable flow path may be quickly and easily reconfigured to drain from either side of the ball
- Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
| Pressure Rating | 600 psig WOG |
|---|---|
| Media | Gas/Oil/Water |
| Series | Pro-Pal® 5061 |
| End Style | C |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Orifice Size | 1/2 in |
| Port Type | Full |
| Type | Standard |
| Actuator Type | Lever Operated |
| Temperature Rating | 100 deg F |
| Nominal Size | 1 in |
| Inlet to Outlet Length | 3-9/16 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2-5/8 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
