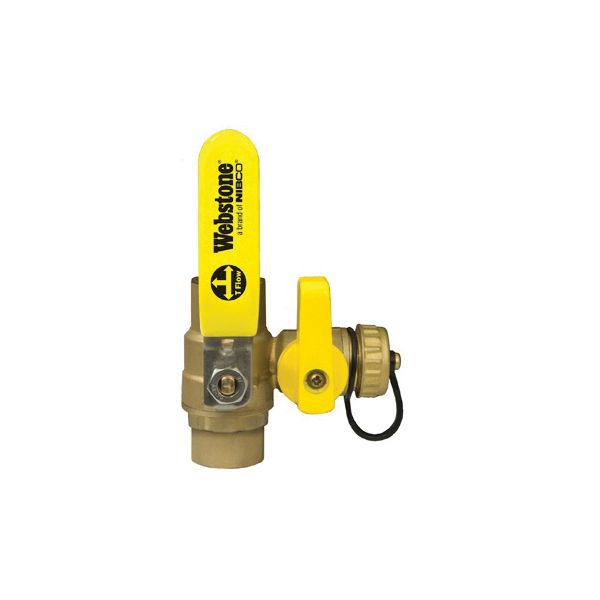

Webstone H-50617W
WEBSTONE CXC BALL W/DRAIN
SKU
695608
Webstone Ball Drain® Clean Brass® Ball Valve, Series: Pro-Pal® 5061, 2 in Nominal, C, 600 psi, 100 deg F, Full Port, Media: Gas/Oil/Water, Reversible Handle Actuator, HCP Brass Ball, 5-1/2 in Inlet to Outlet Length, 4 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
- Eliminates assembly needed to isolate and drain any portion of a piped system
- Reversible handle for added versatility
- Exclusive adjustable flow path allows for draining from either side of the ball
- Saves 27 minutes
- Replaces 4 components
- Eliminates 3 leak paths
- Brass stem and PTFE seat
| Pressure Rating | 600 psi |
|---|---|
| Media | Gas/Oil/Water |
| Series | Pro-Pal® 5061 |
| End Style | C |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Reversible Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 2 in |
| Inlet to Outlet Length | 5-1/2 in |
| Domestic/Import | Import |
| Top to Inlet Center | 4 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
