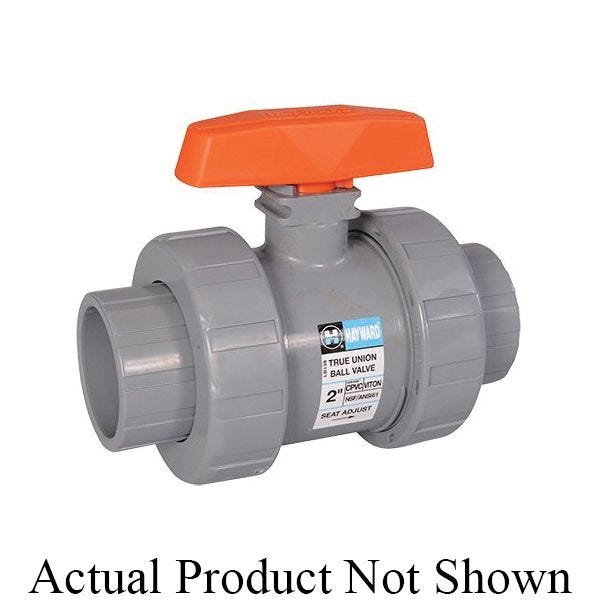

HAYWARD TB2200STE
2"CPVC TU BALL VLV EPDM
SKU
753598
HAYWARD® True Union Ball Valve, Series: TB Series, 2 in Nominal, Socket/Thread End Style, 250 psi Pressure, 34 to 180 deg F, Full Port, T-Handle Actuator, CPVC Ball, 8 in Inlet to Outlet Length, 4.43 in Top to Inlet Center, CPVC Body, PTFE Seat Trim, EPDM Softgoods
- All true union ball valves are assembled with silicone free lubricant and have PTFE seats
- For actuator-ready
- EPDM O-ring
| Ball Material | CPVC |
|---|---|
| Port Type | Full |
| Actuator Type | T-Handle |
| Inlet to Outlet Length | 8 in |
| Body Material | CPVC |
| Top to Inlet Center | 4.43 in |
| Trim Material | PTFE Seat |
| Series | TB Series |
| Softgoods Material | EPDM |
| Temperature Rating | 34 to 180 deg F |
| Pressure Rating | 250 psi |
| End Style | Socket/Thread |
| Nominal Size | 2 in |
| Brand | Hayward |
