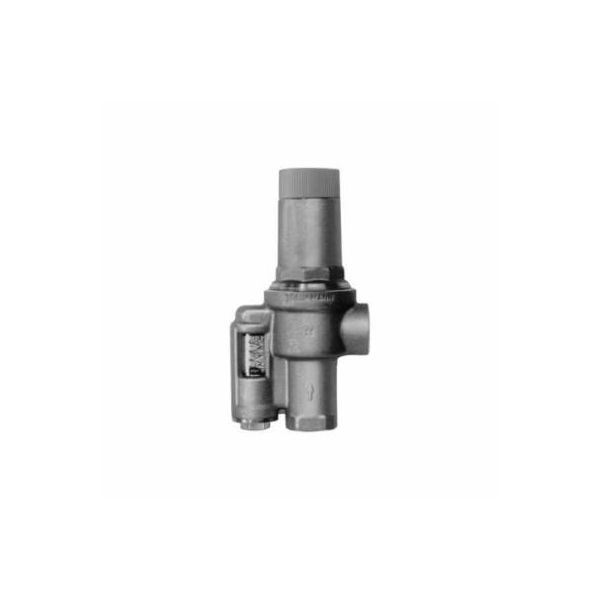

Resideo D146M1040
H/B 1-1/4" DIFF PRESSURE REG
SKU
343524
Resideo Differential Pressure Regulator, Angle, D146M Series, 1-1/4 in Nominal Size, FNPT, 85 psi, 230 deg F Operating, 50 gpm, Brass Body, EPDM Diaphragm, 8-1/2 in H x 4-1/4 in W, Import
- Install between supply and return sides of a hydronic system to stabilize pressure differential and reduce the effects of demand changes
- Control maintains a constant differential between the two sides by opening a bypass whenever the difference between supply and return reaches the setpoint
- Provides silent, trouble-free service
- Easy installation, requires no electrical hookup
- Easy adjustment of pressure by turning regulating cap
- Brass valve body with thermoplastic and stainless steel parts
- Capacity: 395000 Btu/hr
- 0 to 17 psi outlet pressure adjustment range
| Pressure Rating | 85 psi |
|---|---|
| Dimensions | 8-1/2 in H x 4-1/4 in W |
| Series | D146M |
| End Style | FNPT |
| Body Material | Brass |
| Flow Rate | 50 gpm |
| Type | Angle |
| Temperature Rating | 230 deg F Operating |
| Nominal Size | 1-1/4 in |
| Domestic/Import | Import |
| Softgoods Material | EPDM Diaphragm |
| Brand | Honeywell |
