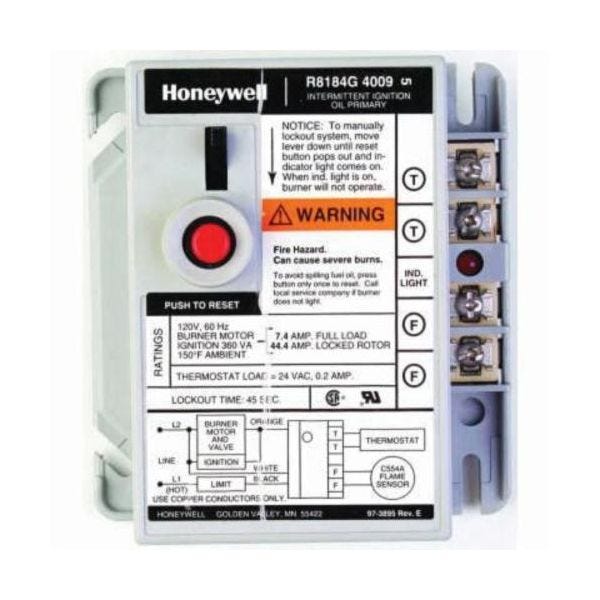

Resideo R8184G4066/U
PROTECTORELAY 15 SEC SAFETY
SKU
607564
Resideo Protectorelay® Oil Burner Control, 120/240 VAC, 3.7 to 7.4 A, Intermittent Ignition, -40 to 130 deg F, Junction Box Mount, 4-3/8 in H x 4 1/8 in W x 2 1/2 in D
- Provides automatic, no recycling control of an intermittent ignition oil burner system
- Controls oil burner, oil valves (if desired) and the ignition transformer in response to a call for heat
- Solid state flame sensing circuit
- LED on terminal strip indicates system lockout
- Remote lockout indication (available on some models)
- Enclosed safety switch with external reset button
- Manual trip lever opens safety switch for system maintenance
- Mounts on standard 4 x 4 in junction box select models may be mounted directly on burner housing
- C554A cadmium sulfide flame detector and 24 VAC thermostat required
- 22.2 to 44.4 A at 120 to 240 VAC for locked rotor
| Ignition Type | Intermittent |
|---|---|
| Dimensions | 4-3/8 in H x 4 1/8 in W x 2 1/2 in D |
| Voltage Rating | 120/240 VAC |
| Mounting Type | Junction Box |
| Temperature Rating | -40 to 130 deg F |
| Amperage Rating | 3.7 to 7.4 A |
| Brand | Honeywell |
