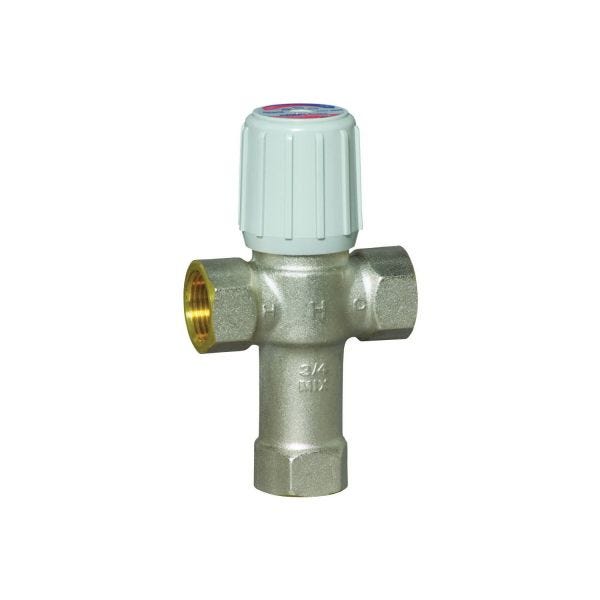

Resideo Braukmann AM101C-1LF/U
MIXING VAL 3/4"IP 70-120 LF
SKU
664319
Resideo Braukmann No Lead Thermostatic Mixing Valve, Adjustable, Series: AM-1, 3/4 in Nominal, NPT, 150 psi, 70 to 120 deg F, 0.5 gpm Flow, Media: Water, 3 in Inlet to Outlet Length, Brass Body, EPDM O-Ring, Nickel Plated, Import
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Maximum pressure 150 psi and maximum temperature of 212 deg F (100 deg C)
- Tamper resistant design with nickel plated brass construction and EPDM o-rings
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
- The wettable surfaces of lead free models contain less than 0.25% of lead by weighted average
- Straight-through (hot and cold at the same level)
- Teflon® coated, nickel plated low lead brass body
- Teflon® coated low lead brass shuttle
| Finish | Nickel Plated |
|---|---|
| Inlet to Outlet Length | 3 in |
| Softgoods Material | EPDM O-Ring |
| Domestic/Import | Import |
| End Style | NPT |
| Body Material | Brass |
| Flow Capacity | 0.5 gpm |
| Nominal Size | 3/4 in |
| Media | Water |
| Type | Adjustable |
| Pressure Rating | 150 psi |
| Temperature Rating | 70 to 120 deg F |
| Series | AM-1 |
| Brand | Honeywell |
