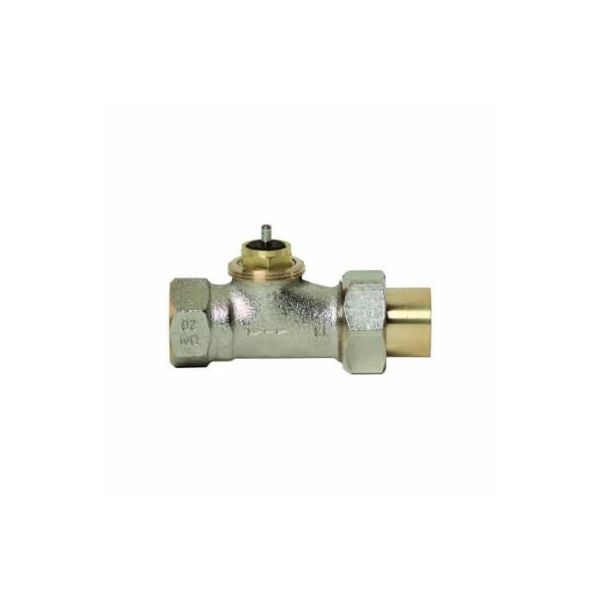

Honeywell Home V2040DSL25
H/B 1" FIP/UN STRT RAD VALVE
SKU
310645
Honeywell Home Thermostatic Radiator Valve, Straight Pattern, Series: V2000, 1 in Nominal, MNPT x FNPT End Style, 150 psi (Hot Water)/15 psi (Steam) Pressure, 248 deg F, Media: Steam/Water, Bronze Body, EPDM Cartridge Softgoods, 4-1/2 in L Dimensions, Domestic/Import: Import
- Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating
- Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems
- Nickel-plated brass casted body
- Replaceable cartridge for easy service with service tool
- Used with T100 set point and capillary actuators
- No electrical connection required for non-electric actuators
- Normally open without control mounted
- Replaces V1001072 valve
- Union nut with threaded tailpiece
- Especially suited for base boards and straight runs where manual valves were not originally installed application
- Use VA8200A001 cartridge change tool
- 2.7 Cv standard capacity
| Pressure Rating | 150 psi (Hot Water)/15 psi (Steam) |
|---|---|
| Dimensions | 4-1/2 in L |
| Media | Steam/Water |
| Series | V2000 |
| End Style | MNPT x FNPT |
| Body Material | Bronze |
| Type | Straight Pattern |
| Temperature Rating | 248 deg F |
| Nominal Size | 1 in |
| Domestic/Import | Import |
| Softgoods Material | EPDM Cartridge |
| Brand | Honeywell |
