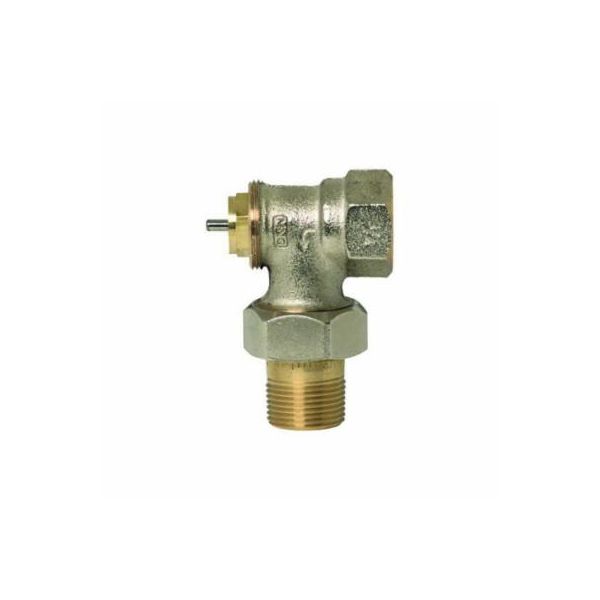

Honeywell Home V2040ESL15
H/B 1/2" FIP/UN T ANG RAD VLVE
SKU
320531
Honeywell Home Thermostatic Radiator Valve, Angle Pattern, Series: V2000, 1/2 in Nominal, MNPT x FNPT End Style, 150 psi (Hot Water)/15 psi (Steam) Pressure, 248 deg F, Media: Steam/Water, Bronze Body, EPDM Cartridge Softgoods, 1 x 2-5/16 in Dimensions, Domestic/Import: Import
- Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating
- Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems
- Nickel-plated brass casted body
- Replaceable cartridge for easy service with service tool
- Used with T100 set point and capillary actuators
- No electrical connection required for non-electric actuators
- Normally open without control mounted
- Replaces V100E1055 valve
- Union nut with threaded tailpiece
- Use where installation space is limited application
- Use VA8200A001 cartridge change tool
- 2.5 Cv standard capacity
| Pressure Rating | 150 psi (Hot Water)/15 psi (Steam) |
|---|---|
| Dimensions | 1 x 2-5/16 in |
| Media | Steam/Water |
| Series | V2000 |
| End Style | MNPT x FNPT |
| Body Material | Bronze |
| Type | Angle Pattern |
| Temperature Rating | 248 deg F |
| Nominal Size | 1/2 in |
| Domestic/Import | Import |
| Softgoods Material | EPDM Cartridge |
| Brand | Honeywell |
