BURNDY YC26L12
BURNDY THIN C-TAP 1/0RUN#2TAP
SKU
768349

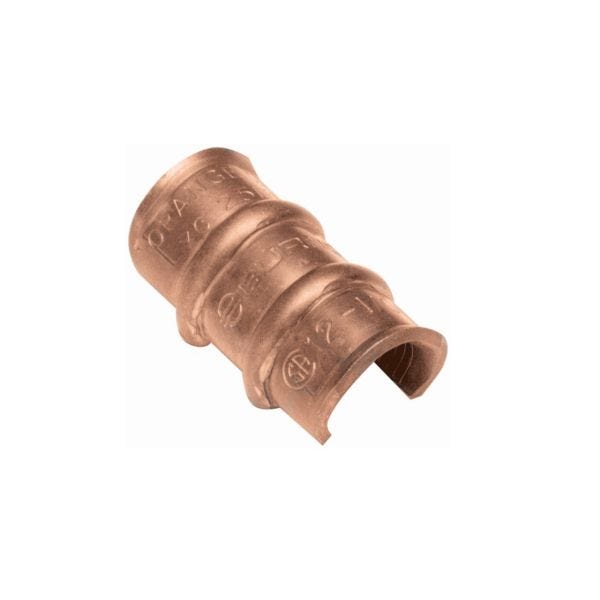

BURNDY® CRIMPIT™ Compression C-Tap, Type YC-L Thinwall, Figure C, 1 AWG Main/Run, 12 to 1 AWG Tap, 600 VAC, Stranded Copper Conductor, 1-13/16 in L Wire Strip, 15 Index, 194 deg F, Copper, Bright Tin Coated, 1.75 in L x 0.9 in THK
- Manufactured form high conductivity wrought copper provides low resistance and excellent electrical conductivity
- Range-taking connector - lowers inventory requirements
- Reinforced ribs - provides maximum pull-out values
- Compact size - easy to tape and insulate connection
- Economical - provides low installed cost economical
- Thin-wall high conductivity copper connector for making copper tap and parallel connections from 14 to 3/0 AWG
- 2/0, 1, 1/0 AWG conductor run
- For mechanical MD6, OUR840, MD7-34R, Y2MR tool, W28VT die, Y35, Y39, Y750, Y45 tool, UC26 die, y46 tool and UC26 die with puadp-1 adapter
| Temperature Rating | 194 deg F |
|---|---|
| Main/Run Size | 1 AWG |
| Dimensions | 1.75 in L x 0.9 in THK |
| Tap Size | 12 to 1 AWG |
| Specifications | 1-13/16 in L Wire Strip, 15 Index |
| Shape | Figure C |
| Voltage Rating | 600 VAC |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Type | Type YC-L Thinwall |
| Finish | Bright Tin Coated |
| Brand | Burndy LLC |
| Taps | C Tap |
