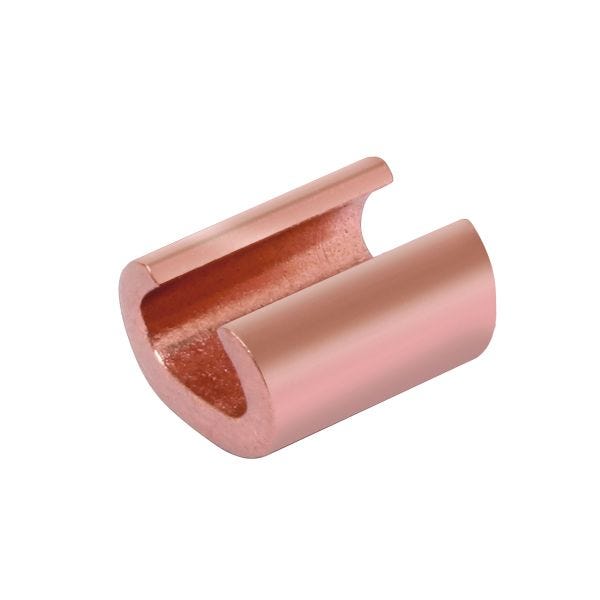

BURNDY® CRIMPIT™ Compression C-Tap Connector, Series: YC-C, C, 4/0 to 3/0 AWG Main/Run, 6 to 2 AWG Tap, 600 to 35000 VAC, Commercial Stranded Copper Conductor, D3 Element A Die Index, 90 deg C, Copper, Plain Copper Plated, 1-1/16 in L
- Range-taking connector - lowers inventory requirements
- Compact size easy to tape and insulate connection
- Manufactured from high conductivity wrought copper provides low resistance and excellent electrical conductivity
- Economical provides low installed cost
- 2 AWG solid, 2 AWG stranded run conductors
- For Y35, Y750, Y45, Y46 tool, U-C die, MD6 tool and W-C die
| Temperature Rating | 90 deg C |
|---|---|
| Main/Run Size | 4/0 to 3/0 AWG |
| Dimensions | 1-1/16 in L |
| Tap Size | 6 to 2 AWG |
| Specifications | D3 Element A Die Index |
| Shape | C |
| Voltage Rating | 600 to 35000 VAC |
| Conductor Type | Commercial Stranded Copper |
| Series | YC-C |
| Material | Copper |
| Finish | Plain Copper Plated |
| Brand | Burndy LLC |
| Taps | C Tap |
