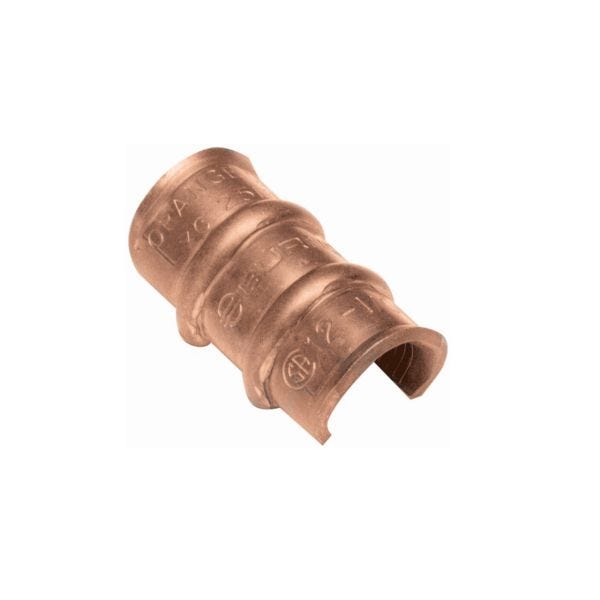

BURNDY YC2L12
THIN C-TAP 4 RUN 4 TAP
SKU
768351
BURNDY® CRIMPIT™ Compression C-Tap Connector, Type YC-L Thinwall, Figure C, 4 AWG Main/Run, 12 to 4 AWG Tap, 600 VAC, Stranded Copper Conductor, 12 Element A Die Code (Mechanical), 12M Element A Die Code (Hydraulic), 1 Rib, 1-3/16 in L Wire Strip, 194 deg F, Copper, Bright Tin Coated, 1.18 in L x 0.81 in THK
- Manufactured form high conductivity wrought copper provides low resistance and excellent electrical conductivity
- Range-taking connector - lowers inventory requirements
- Reinforced ribs - provides maximum pull-out values
- Compact size - easy to tape and insulate connection
- Economical - provides low installed cost economical
- Thin-wall high conductivity copper connector for making copper tap and parallel connections from 14 to 3/0 AWG
- For mechanical, MD6, OUR840 and MD7-34R tool, W25VT die, Y2MR tool, hydraulic BCT500, Y500CT, BAT500 tool, WC2 die, Y35, Y39, Y750, Y45, y46 tool and UC2 die
| Temperature Rating | 194 deg F |
|---|---|
| Main/Run Size | 4 AWG |
| Dimensions | 1.18 in L x 0.81 in THK |
| Tap Size | 12 to 4 AWG |
| Specifications | 12 Element A Die Code (Mechanical), 12M Element A Die Code (Hydraulic), 1 Rib, 1-3/16 in L Wire Strip |
| Shape | Figure C |
| Voltage Rating | 600 VAC |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Type | Type YC-L Thinwall |
| Finish | Bright Tin Coated |
| Brand | Burndy LLC |
| Taps | C Tap |
