LEGEND 101-520

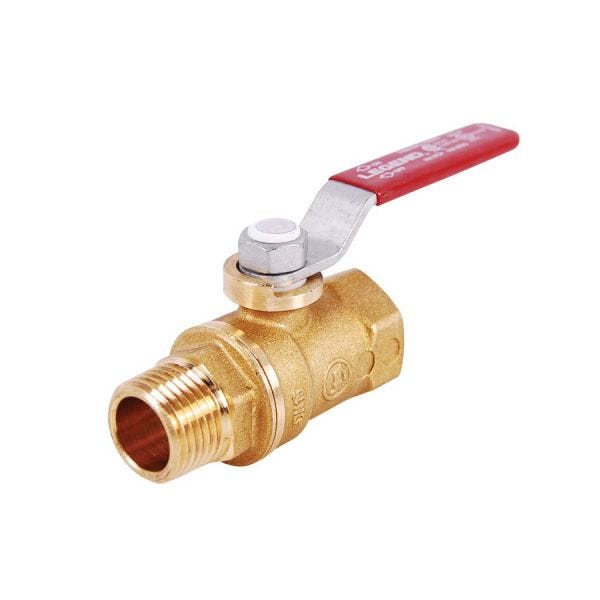

1/8" T-900 MXF BALL VALVE
SKU
639419
LEGEND Mini Ball Valve, Series: T-900MxF, 1/8 in Nominal, MNPT x FNPT End Style, 600 psi Pressure, Large Port, Media: Oil/Steam/Water, Lever Operated Actuator, Forged Brass Ball, 1.87 in Inlet to Outlet Length, 1.06 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE Softgoods, 2.78 in W x 1.44 in H Dimensions, Domestic/Import: Import
- Forged end adapter, chrome plated forged brass stem/ball, 3M Dyneon® TFM® PTFE anti-friction thrust washer anti-friction washer/seat, Dupont® FKM fluorocarbon stem O-Ring, commercial grade, die-cast coated aluminum handle dacromet coated steel with PVC resin lock handle nut
- Traditional forged brass mini-ball valve, with Dacromet® coated steel handle has vinyl sleeve
- Durable forged brass construction
- Improved 3M Dyneon® TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly
- Bottom loaded blow-out proof stem is a maintenance-free, dual O-Ring seal design, eliminating the need to tighten a packing nut
- Space-saving male-by-female end connections are ideal for confined piping installations
- TFM/PTFE thrust washer
| Softgoods Material | TFM/PTFE |
|---|---|
| Dimensions | 2.78 in W x 1.44 in H |
| Port Type | Large |
| End Style | MNPT x FNPT |
| Media | Oil/Steam/Water |
| Ball Material | Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 1.87 in |
| Top to Inlet Center | 1.06 in |
| Pressure Rating | 600 psi |
| Body Material | Brass |
| Nominal Size | 1/8 in |
| Series | T-900MxF |
| Actuator Type | Lever Operated |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Legend |
