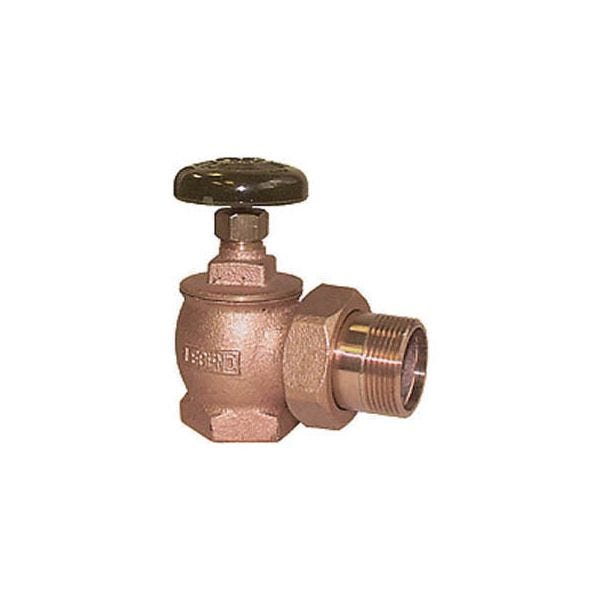

LEGEND 110-104
3/4" IPS ANGLE RADIATOR VLV
SKU
510012
LEGEND Angle Radiator Valve, Series: T-431, 3/4 in Nominal, MNPT x FNPT End Style, 15 psi Pressure, Media: Steam, Handle Actuator, 2.54 in Inlet to Outlet Length, 3.18 in Open x 2.74 in Close Top to Inlet Center, Cast Bronze Body, Forged Brass Trim, Domestic/Import: Import
- 15 psi WSP saturated steam
- PTFE packing
- PTFE is a registered trademark of the DuPont company
- EPDM disc
| End Style | MNPT x FNPT |
|---|---|
| Media | Steam |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.54 in |
| Top to Inlet Center | 3.18 in Open x 2.74 in Close |
| Pressure Rating | 15 psi |
| Body Material | Cast Bronze |
| Nominal Size | 3/4 in |
| Series | T-431 |
| Actuator Type | Handle |
| Trim Material | Forged Brass |
| Brand | Legend |
| Use | Threaded |
