LEGEND 102-313

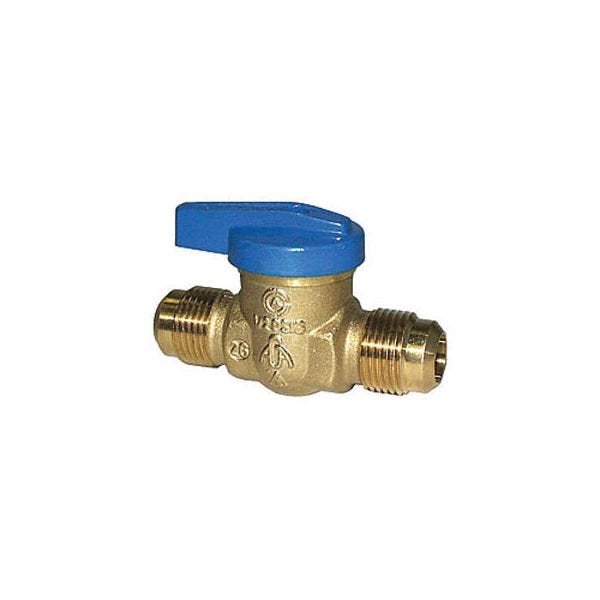

LEGEND Blue Top™ Ball Valve, 1-Piece, Series: T-3000, 1/2 in Nominal, Flare, 175 psi CWP, Media: Gas, 0.4 in Orifice, Polished Chrome Forged Brass Ball, 2.62 in Inlet to Outlet Length, Forged Brass Body, Forged Brass Stem Trim, NBR, 1.79 in H, Import

• Patented 1-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs
• Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
• Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
• The 175 psi pressure rating permits high-pressure air tests, without the grease-seal Blow-out common to plug-type gas cocks
• Not suitable for steam service
• CSA certified 3-88 for use in 2 or 5 lb house piping systems
• Reprinted from the online certifications directory with permission from underwriters laboratories, inc
• CSA certified for use with natural, manufactured or mixed liquefied petroleum and LP gas/air mixtures
• ANSI standard Z21.15 for use as a gas appliance connector valve for 1/2 lb systems
• Threaded end connections conform to ANSI/ASME B1.20.1
• Massachusetts commonwealth approved (model T-3001)
• Manufactured in an ISO 9002 accredited facility
• A flared connection is not subject to the high assembly torque common to pipe-threaded connections, thereby greatly reducing the chance of body seam seal failure and subsequent leakage
• NBR stem O-ring
