LEGEND 202-423
1/2" LEGEND CPVC BV W/DRAIN
SKU
532929

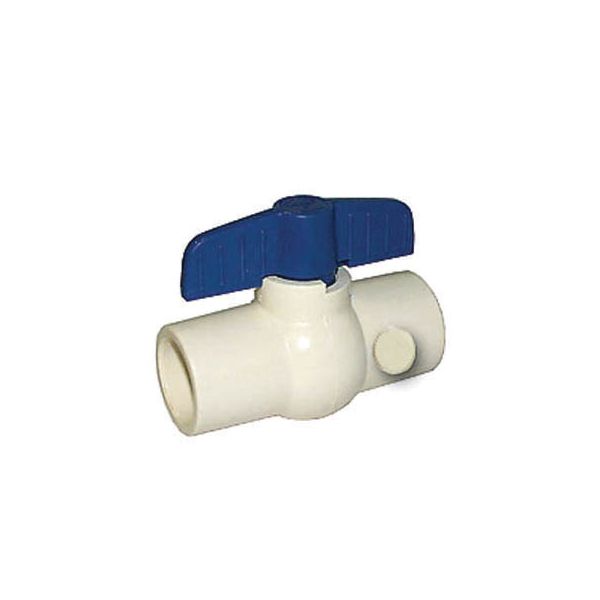

LEGEND Ball Valve, Compact, Series: S-606, 1/2 in Nominal, Solvent, 150 psi, 180 deg F, Full Port, Media: Gas/Oil/Water, Lever Operated Actuator, CPVC Ball, 2.69 in Inlet to Outlet Length, CPVC Body, CPVC Stem and PTFE Seat Trim, Bone, 2 in H, Import
- Removable waste cap allows line drainage
| Dimensions | 2 in H |
|---|---|
| Port Type | Full |
| End Style | Solvent |
| Media | Gas/Oil/Water |
| Ball Material | CPVC |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.69 in |
| Type | Compact |
| Pressure Rating | 150 psi |
| Body Material | CPVC |
| Nominal Size | 1/2 in |
| Temperature Rating | 180 deg F |
| Color | Bone |
| Series | S-606 |
| Actuator Type | Lever Operated |
| Trim Material | CPVC Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1/2" |
