Liberty Pumps 1102/LE41M
LIB/DUPLEX LE41M
SKU
344140
Liberty Pumps®, 1102/LE41M, Series: 1100, 124 gpm Flow Rate, 4 in Inlet, 115 VAC, 12 A Full Load, 1 ph, 4/10 hp, 20 ft Maximum Head, 110 gal Capacity, 2 in Discharge Pipe, Specifications: 1 Safety Factor, 221 deg F Thermal Overload, Polyethylene, 1725 rpm Motor

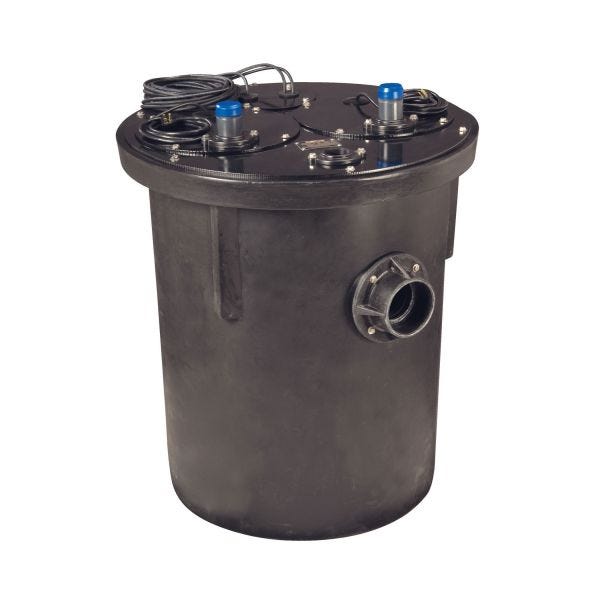

- 30 in diameter x 36 in height, 110 gal capacity heavy duty structural foam basin
- Completely assembled system with piping included
- Floats for control unit factory pre-set
- 4 in inlet hub with rubber pipe seal
- Heavy, 1/4 in enamel coated steel cover
- Separate sump access covers
- 10 in diameter inspection cover
- Restraints to hold pumps securely in position
- PRG grinder models come with 2 in discharge only
| Series | 1100 |
|---|---|
| Horsepower | 4/10 hp |
| Flow Rate | 124 gpm |
| Motor Speed | 1725 rpm |
| Discharge Pipe Size | 2 in |
| Amperage Rating | 12 A Full Load |
| Material | Polyethylene |
| Phase | 1 ph |
| Voltage Rating | 115 VAC |
| Maximum Head | 20 ft |
| Specifications | 1 Safety Factor |
| Inlet Size | 4 in |
| Temperature Rating | 221 deg F Thermal Overload |
| Capacity | 110 gal |
| Brand | Liberty Pumps |
