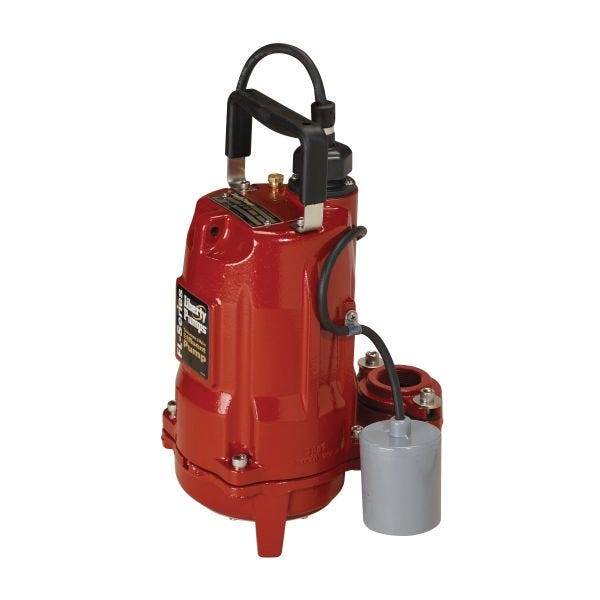

Liberty Pumps FL64M-2
6/10HP EFLU PUMP 460-480V 3PH
SKU
601708
Liberty Pumps®, FL64M-2, Mid-Range Head, Series: FL60, 100 gpm Maximum, 15 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/2 in FNPT Outlet, 6/10 hp, 440 to 480 VAC, 2.8 A Full Load/12.7 A Locked Rotor, 60 Hz Frequency, 3 ph, 3450 rpm Motor, SEOOW 25 ft Cord, Cast Iron Multi-Vane Semi-Open Impeller, 248 deg F Thermal Overload, NEMA 1/4X Enclosure, Ball/Race Bearing, 11.2 in W x 7 in D x 16.4 in H Dimensions
- Semi-open impeller permits passage of solids without clogging
- Heavy cast iron construction
- 416 stainless steel rotor shaft
- Oil filled hermetically sealed motor
- Permanently lubricated upper and lower ball bearings
- Unitized carbon and ceramic shaft seal
- Bare lead
- 3/4 in solid handling
- Stainless steel fasteners
- 140 deg F fluid temperature
- Class B stator winding
- Manual pump
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Non-Automatic |
| Enclosure Type | NEMA 1/4X |
| Maximum Flow Rate | 100 gpm |
| Type | Mid-Range Head |
| Rated Head | 15 ft |
| Cord Type | SEOOW 25 ft |
| Temperature Rating | 248 deg F Thermal Overload |
| Amperage Rating | 2.8 A Full Load/12.7 A Locked Rotor |
| Outlet Size | 1-1/2 in FNPT |
| Phase | 3 ph |
| Bearing Type | Ball/Race |
| Dimensions | 11.2 in W x 7 in D x 16.4 in H |
| Impeller Type | Cast Iron Multi-Vane Semi-Open |
| Series | FL60 |
| Material | Cast Iron |
| Horsepower | 6/10 hp |
| Brand | Liberty Pumps |
